7427227

Overview

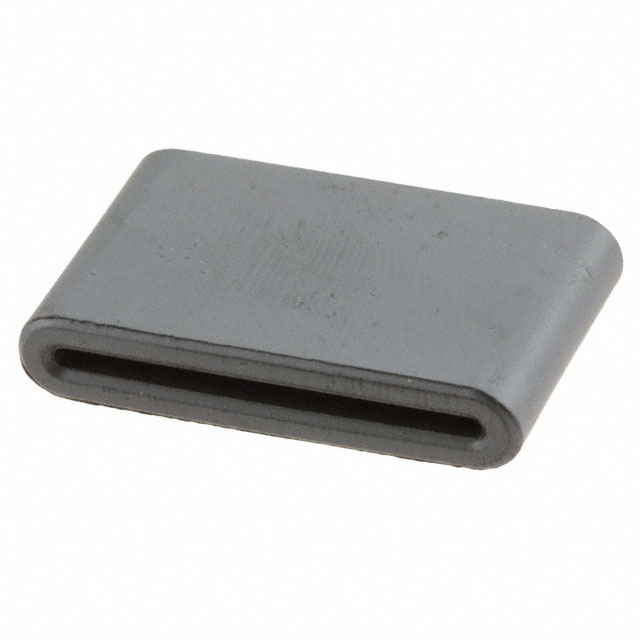

The Würth Elektronik part number 7427227 is a WE-FLAT flat ferrite core designed for electromagnetic interference suppression. It utilizes the 4W620 material composition and features a 22 mm width to accommodate flat cables. This component belongs to the WE-FLAT series, providing a low-profile solution for EMI filtering applications in digital devices.

Feature Summary

• Designed specifically for flat cable geometries
• Utilizes 4W620 ferrite material for effective noise suppression
• Part of the WE-FLAT product series

Applications

• Flat cable EMI suppression
• Digital device noise reduction

Procurement Notes

Verify the exact impedance value at the required frequency from the official datasheet before procurement. Confirm that the 22 mm internal width matches the target flat cable dimensions. Ensure the 4W620 material specification aligns with the intended operating frequency range for optimal performance.

Selection Notes

Select this component when a low-profile magnetic core is required for flat ribbon cables. The 22 mm width accommodates standard flat cable bundles. The 4W620 material offers specific permeability characteristics suitable for general EMI suppression tasks in compact electronic assemblies.

Part Context

This component is part of the WE-FLAT series from Würth Elektronik, which specializes in flat ferrite cores. These components are engineered to provide efficient electromagnetic interference filtering while maintaining a minimal profile, making them suitable for space-constrained designs involving flat cabling solutions.

FAQ

What is the internal width of the 7427227 ferrite core?

The internal width is 22 mm.

Which ferrite material is used in the 7427227?

The component uses 4W620 material.
