Overview

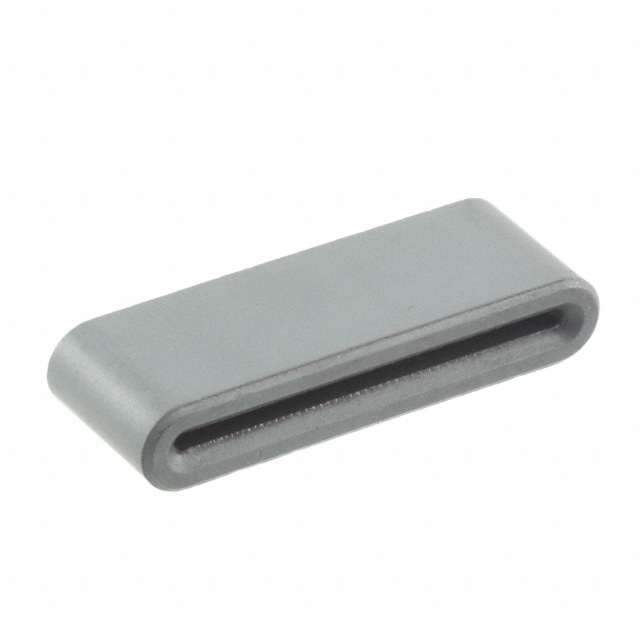

The Würth Elektronik 7427228 is a flat ferrite core designed for filtering ribbon cables and suppressing common-mode interferences. Constructed from 4W620 material, it features a 26-pole round configuration with an impedance of 80 Ω at 100 MHz. The component measures 35 mm in length and is intended for general electronic equipment applications.

Feature Summary

• Designed for easy filtering of ribbon cables
• Suppresses common-mode interferences
• Constructed from 4W620 material

Applications

• Ribbon cable filtering
• Common-mode interference suppression
• General electronic equipment

Procurement Notes

Verify the specific 26-pole configuration and 80 Ω impedance rating against design requirements. Confirm that the 4W620 material composition aligns with thermal and frequency constraints. Ensure compatibility with the target ribbon cable dimensions before integration into the assembly process.

Selection Notes

Select this component when filtering ribbon cables requires a flat profile to minimize space usage. The 4W620 material provides suitable performance for general electronic equipment. Consider the 26-pole geometry to ensure proper fit over the specific cable width and thickness.

Part Context

This part belongs to the WE-FLAT series of flat ferrite cores manufactured by Würth Elektronik. It is specifically engineered for applications involving ribbon cables where standard circular cores are unsuitable due to spatial or geometric constraints.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
