Description：FERRITE CORE 50 OHM SOLID
Series：WE-FLAT
Mfr：Würth Elektronik
Package：Tray

SKU:1abda35c9212 Category: Cable Ferrites Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE 50 OHM SOLID
Series：WE-FLAT
Mfr：Würth Elektronik
Package：Tray
Type：Flat
Design：Solid
Impedance @ Frequency：50Ohm @ 100MHz
Material：4W620
Inner Dimension：0.866" W x 0.051" H (22.00mm x 1.30mm)
Outer Dimension：1.063" W x 0.256" H (27.00mm x 6.50mm)
Ratings：-
Mounting Type：Free Hanging
Length：1.063" (27.00mm)

Download product information

7427231

Overview

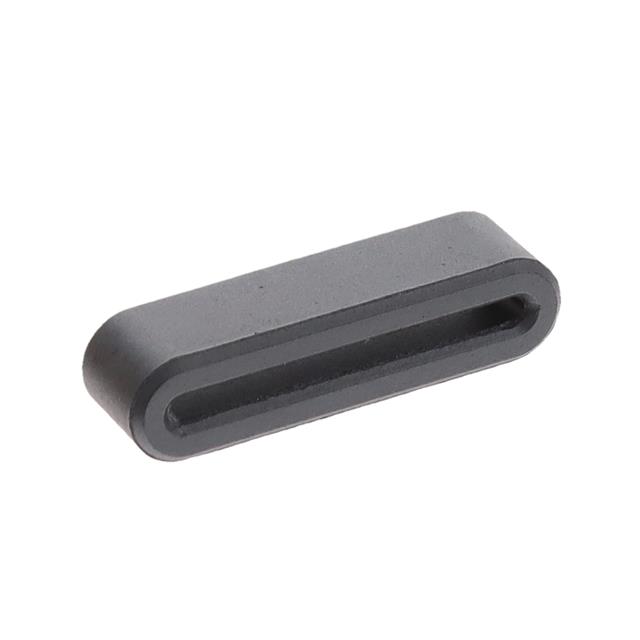

The Würth Elektronik 7427231 is a solid flat ribbon cable ferrite core from the WE-FLAT series, designed for EMI suppression. It features a 50 Ohm impedance at 100 MHz and utilizes 4 W 620 ferrite material. The component has an internal length of 22 mm, external length of 27 mm, external width of 8 mm, internal height of 1.3 mm, and external height of 6.5 mm. It supports a maximum operating temperature of +125°C and a minimum of -25°C.

Feature Summary

Solid construction for flat ribbon cables
50 Ohm impedance characteristic
WE-FLAT series design

Applications

EMI suppression for flat ribbon cables
Signal integrity enhancement in electronic assemblies

Procurement Notes

Verify the specific part number 7427231 against official Wurth Elektronik documentation to confirm current manufacturing status and compliance with RoHS standards. Ensure that the required impedance and physical dimensions match the design specifications before procurement. Cross-reference datasheet revisions to avoid discrepancies in material properties or testing frequencies.

Selection Notes

Select this component when flat ribbon cable EMI suppression is required with a 50 Ohm impedance profile. Consider the 4 W 620 material composition for its frequency response characteristics. Verify that the internal dimensions accommodate the target cable thickness and that the operating temperature range meets the environmental requirements of the application.

Part Context

This component belongs to the WE-FLAT series of flat ferrite cores manufactured by Würth Elektronik. These cores are specifically engineered for suppressing electromagnetic interference on flat ribbon cables. The series offers various impedance values and sizes to suit different cable configurations and frequency requirements.

Replacement Considerations

Consult official Wurth Elektronik substitution guides for verified alternatives. Ensure any replacement matches the 50 Ohm impedance, 4 W 620 material, and compatible physical dimensions for flat ribbon cables.
