74272595

Overview

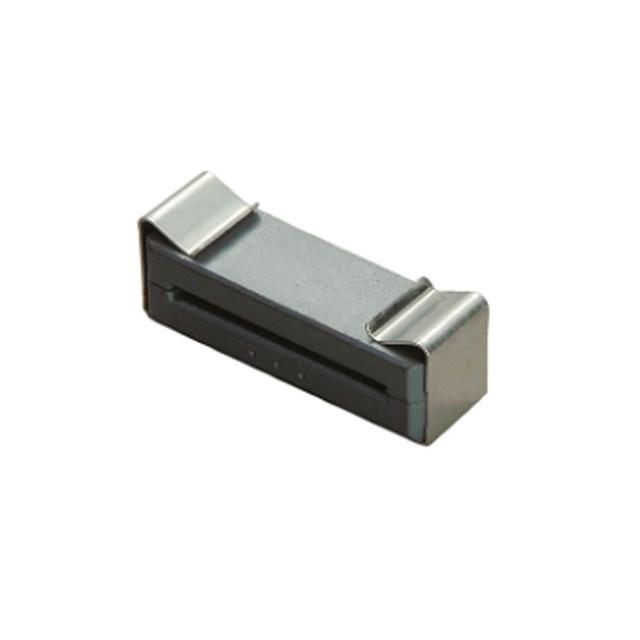

The Würth Elektronik 74272595 is a flat ferrite core from the WE-SFA series designed for EMI suppression. It features an impedance of 100 Ohms and accommodates 26 poles. The component measures 34 mm in length and 2 mm in thickness, providing a compact solution for flat ribbon cables.

Feature Summary

• Flat geometry optimized for ribbon cable integration
• Solid construction for stable electromagnetic interference suppression
• High pole count capacity supporting multi-conductor data lines

Applications

• Suppression on flat ribbon cables
• Electromagnetic interference mitigation in data transmission lines
• Signal integrity enhancement in electronic assemblies

Procurement Notes

Verify the specific impedance value and pole count against the official datasheet to ensure compatibility with the target application requirements. Confirm that the physical dimensions align with the available space constraints within the equipment design before finalizing procurement decisions.

Selection Notes

Select this component when managing high-density flat ribbon cables requiring effective common-mode noise reduction. The 100 Ohm impedance rating suits typical digital signal frequencies. Ensure the 26-pole capacity matches the cable configuration to maintain optimal shielding performance without excessive bulk.

Part Context

This part belongs to the WE-SFA series of solid flat ferrite cores manufactured by Würth Elektronik. These components are engineered specifically for suppressing electromagnetic interference on flat cables, offering a reliable alternative to split-core designs where permanent installation is preferred.

Replacement Considerations

Consult the manufacturer's cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains the same 100 Ohm impedance at the operating frequency and fits the 34 mm x 2 mm form factor.
