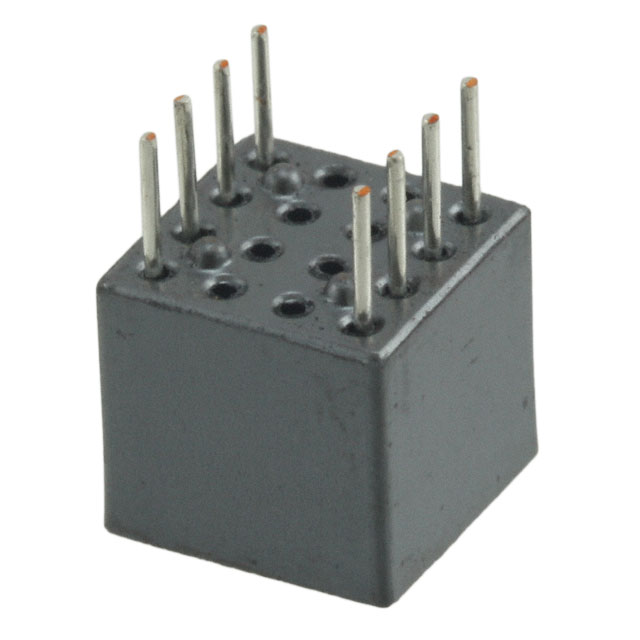

742730023

$2.57

Description：FERRITE BEAD 334 OHM RADIAL 1LN
Series：WE-MLS
Mfr：Würth Elektronik
Package：Tube

SKU:6b3ddf7c5d93 Category: Ferrite Beads and Chips Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 334 OHM RADIAL 1LN
Series：WE-MLS
Mfr：Würth Elektronik
Package：Tube
Filter Type：-
Number of Lines：4
Impedance @ Frequency：334 Ohms @ 100 MHz
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Ratings：-
Operating Temperature：-25°C ~ 125°C
Package / Case：Radial
Mounting Type：Through Hole
Height (Max)：0.209" (5.30mm)
Size / Dimension：0.441" L x 0.441" W (11.20mm x 11.20mm)
Features：-

Download product information

742730023

Overview

The Würth Elektronik 742730023 is a WE-MLS multiline EMI suppression ferrite bead designed for through-hole mounting. It features a radial lead configuration with dimensions of 11.2 mm in length and width, and 11 mm in height. The component utilizes a material formulation that provides an impedance of 202 Ω at 25 MHz and 334 Ω at 100 MHz. It supports a maximum current rating of 4 A and includes a tolerance specification of ±25% for its impedance characteristics.

Feature Summary

Multiline EMI suppression capability for noise reduction
Through-hole radial lead mounting style
High impedance performance across specified frequency ranges

Applications

General electromagnetic interference suppression
Signal line filtering in electronic circuits

Procurement Notes

Verify the specific impedance values and physical dimensions against the official Wurth Elektronik datasheet before integration. Confirm that the through-hole footprint matches the PCB layout requirements. Ensure the operating temperature range and current ratings align with the system design specifications to guarantee reliable performance under load conditions.

Selection Notes

Select this component when multiline EMI suppression is required for through-hole applications. The radial lead design facilitates easy insertion into standard PCBs. Consider the impedance profile at target frequencies to ensure effective noise attenuation. Verify compatibility with assembly processes and environmental conditions specified in the product documentation.

Part Context

This part belongs to the WE-MLS series from Würth Elektronik, which specializes in multiline EMI suppression ferrites. These components are engineered to provide effective noise filtering while maintaining signal integrity. The series offers various impedance options and mounting styles to suit diverse electronic design needs.
