74275013

Overview

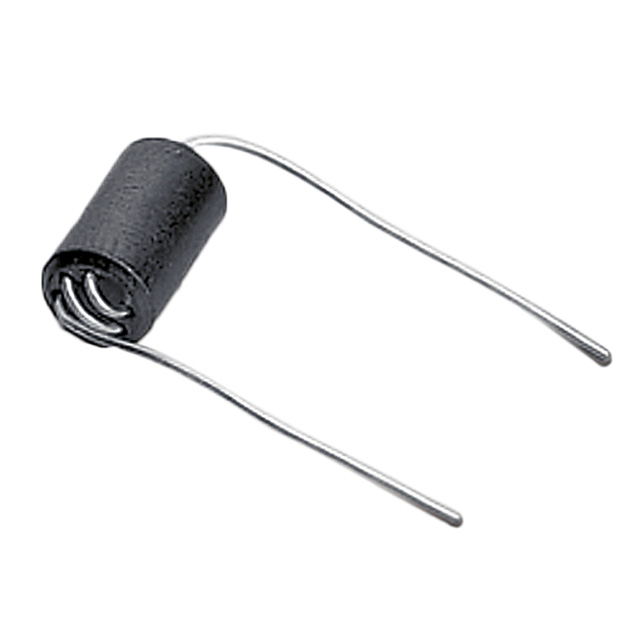

The Würth Elektronik 74275013 is a radial leaded ferrite bead from the WE-UKW series, designed for signal line filtering. It exhibits an impedance of 950 Ohms at 100 MHz. The component supports a maximum current rating of 3A with a maximum DC resistance of 20 milliohms. Physical dimensions include a diameter of 6.00mm and a height of 10.00mm. It operates within a temperature range of -25°C to +125°C.

Feature Summary

• Provides high impedance attenuation for signal lines in the radio frequency spectrum
• Radial leaded construction facilitates through-hole mounting on printed circuit boards
• Engineered for low insertion loss with minimal DC resistance impact on power integrity

Applications

• Signal line noise suppression in electronic circuits
• Electromagnetic interference (EMI) filtering for data transmission lines
• High-frequency noise reduction in consumer electronics and industrial equipment

Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact impedance tolerances and packaging configurations. Ensure that the selected variant meets the required thermal performance standards for the intended operating environment. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Selection Notes

Select this component when signal line filtering requires high impedance at 100 MHz with a 3A current capacity. The radial package is suitable for applications where board space allows for through-hole technology. Evaluate the thermal derating curves to ensure reliable operation within the specified -25°C to +125°C range under maximum load conditions.

Part Context

This ferrite bead belongs to the WE-UKW series, which focuses on ultra-high frequency performance. The series provides solutions for suppressing electromagnetic interference in compact electronic designs. Würth Elektronik utilizes specific ferrite materials to achieve stable impedance characteristics across varying temperatures and frequencies.

Replacement Considerations

Consult official substitution lists for equivalent WE-UKW series components or alternative manufacturers offering similar 950 Ohm @ 100 MHz specifications. Verify mechanical footprint compatibility and electrical parameter alignment before implementing any substitute part numbers.
