74275046

$0.44

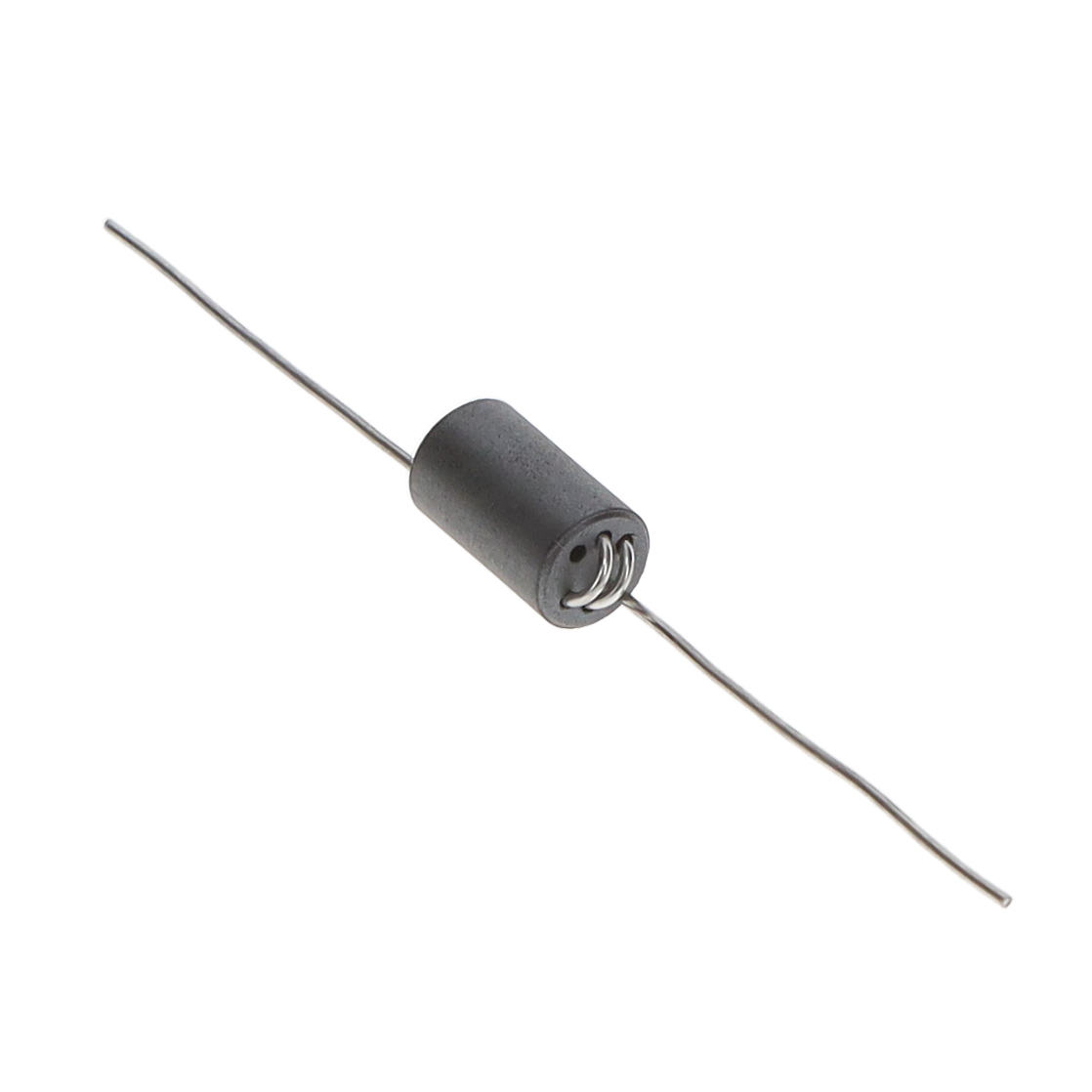

Description：FERRITE BEAD 773 OHM AXIAL 1LN
Series：WE-UKW
Mfr：Würth Elektronik
Package：Bulk

SKU:789a9c431b3c Category: Ferrite Beads and Chips Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 773 OHM AXIAL 1LN
Series：WE-UKW
Mfr：Würth Elektronik
Package：Bulk
Filter Type：Signal Line
Number of Lines：1
Impedance @ Frequency：773 Ohms @ 100 MHz
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：20mOhm
Ratings：-
Operating Temperature：-25°C ~ 125°C
Package / Case：Axial
Mounting Type：Through Hole
Height (Max)：-
Size / Dimension：0.236" Dia x 0.394" L (6.00mm x 10.00mm)
Features：-

Download product information

74275046

Overview

The Würth Elektronik part number 74275046 is a WE-UKW EMI suppression ferrite bead featuring a six-hole configuration. It provides an impedance of 773 Ohms and supports a current rating (IR) of 3 Amperes. This component is designed for effective electromagnetic interference suppression in multi-conductor cable assemblies.

Feature Summary

Six-hole design for simultaneous suppression of multiple conductors
High impedance value for effective noise attenuation
Rated for 3 Ampere current handling

Applications

Multi-conductor cable EMI suppression
Data line noise filtering
Power cable interference reduction

Procurement Notes

Verify the specific impedance and current ratings against the official datasheet before integration. Confirm that the six-hole geometry matches the target cable bundle diameter. Ensure compliance with project-specific material regulations.

Selection Notes

Select this component when suppressing noise on bundles of wires rather than single cables. The six-hole structure allows for compact installation on grouped conductors. Verify that the 3A current rating meets the operational requirements of the application.

Part Context

This component belongs to the WE-UKW series from Würth Elektronik, specialized for high-frequency EMI suppression. The six-hole architecture distinguishes it from standard single-hole snap-on cores, offering a solution for dense cable harnesses requiring consolidated noise control.
