Product Detailed Parameters
- Description：FERRITE BEAD 416 OHM 2020 1LN
- Series：WE-SUKW
- Mfr：Würth Elektronik
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：416 Ohms @ 100 MHz
- Current Rating (Max)：9A
- DC Resistance (DCR) (Max)：11mOhm
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Package / Case：2020 (5050 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.201" (5.10mm)
- Size / Dimension：0.217" L x 0.197" W (5.50mm x 5.00mm)
- Features：-
Download product information
Overview

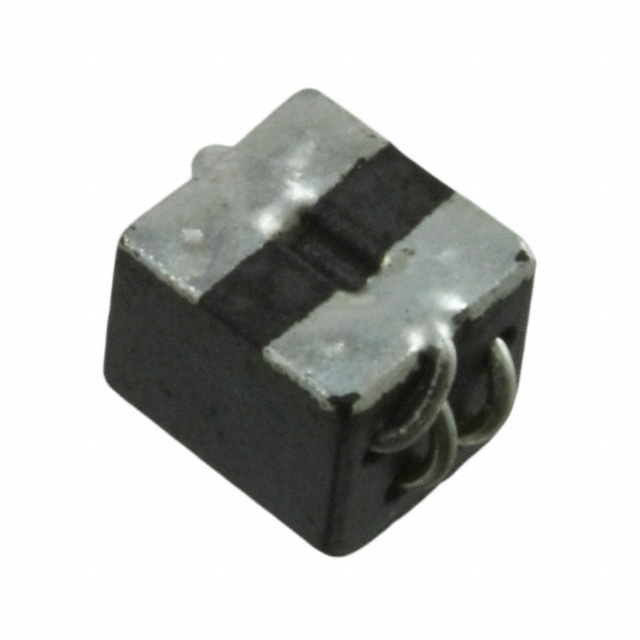

The Würth Elektronik 7427511 is a Surface Mount Device (SMD) ferrite bead belonging to the WE-SUKW series. It features a five-hole design intended for EMI suppression in general electronic equipment. The component has dimensions of 5.50 mm length by 5.00 mm width and a maximum height of 5.10 mm. It exhibits an impedance of 416 Ohms at 100 MHz with a DC resistance maximum of 3000 micro-ohms. The device supports a rated DC current of 5 Amperes.
Feature Summary
- Five-hole SMD structure for enhanced high-frequency noise attenuation
- Designed for surface mount assembly on printed circuit boards
- Capable of handling high DC current ratings up to 5 Amperes
Applications
- EMI suppression in general electronic equipment
- Differential mode filtering for single-line applications
- Power supply input/output noise reduction
Procurement Notes
Verify the specific datasheet version when ordering, as manufacturer documentation may be updated. Confirm that the surface mount package dimensions and terminal configuration match the target PCB footprint requirements. Ensure the selected component meets the required impedance characteristics for the specific frequency range of the application.
Selection Notes
Select this component when high current capacity is required alongside effective differential mode noise suppression. The five-hole geometry provides superior performance compared to standard single-hole beads for thick cables or traces. Verify that the operating temperature range and current derating curves align with the system's thermal environment.
Part Context
This part belongs to the WE-SUKW series of SMD ferrite beads from Würth Elektronik. These components are engineered for compact designs requiring robust EMI filtering capabilities. The series offers various impedance values and current ratings to suit different power and signal integrity needs in modern electronics.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult the manufacturer for direct equivalents if alternative sourcing is required.
