74275815

Overview

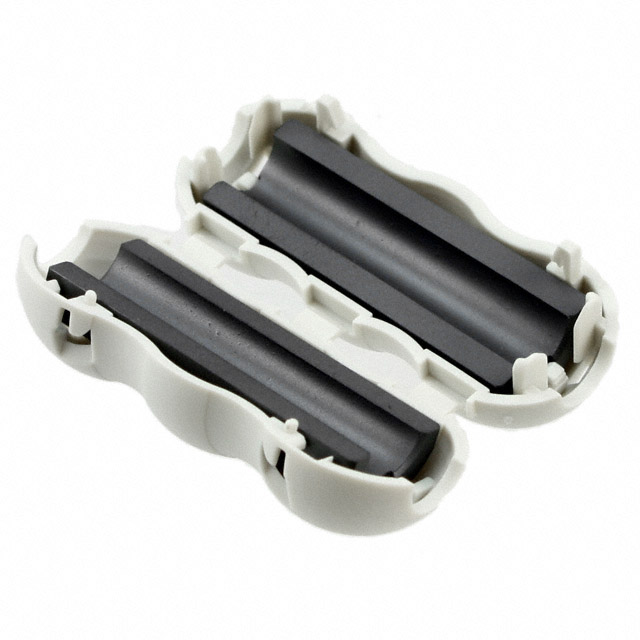

The Würth Elektronik 74275815 is a snap-on ferrite core from the STAR-BUENO series, designed for electromagnetic interference suppression. It features an internal diameter of 8.5 mm and measures 24 mm x 24 mm x 56.2 mm. Constructed from 4W620 material, it provides an impedance of 417 Ohms at 100 MHz and 223 Ohms at 25 MHz.

Feature Summary

• Snap-on design with optical closing control mechanism
• Security lock ensures electromagnetic compatibility
• Made from 4W620 ferrite material

Applications

• Electromagnetic interference suppression

Procurement Notes

Verify the manufacturer part number 74275815 against official Wurth Elektronik documentation to confirm specifications. Ensure the component matches the required 8.5 mm aperture and STAR-BUENO series designation. Cross-reference impedance values at 25 MHz and 100 MHz with the datasheet before procurement.

Selection Notes

Select this component when a snap-on ferrite core with an 8.5 mm inner diameter is required for EMI suppression. The 4W620 material offers specific impedance characteristics suitable for general electronic applications. Verify that the physical dimensions of 24 mm x 24 mm x 56.2 mm fit the available space in the assembly.

Part Context

This component belongs to the STAR-BUENO series of snap-on ferrite cores manufactured by Würth Elektronik. These cores are engineered for easy installation on cables without disconnection. The 4W620 material composition defines its magnetic properties and frequency response range for noise reduction.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
