742792030

$0.18

Description：FERRITE BEAD 30 OHM 0805 1LN
Series：WE-CBF
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e4be20f72553 Category: Ferrite Beads and Chips Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 30 OHM 0805 1LN
Series：WE-CBF
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：-
Number of Lines：1
Impedance @ Frequency：30 Ohms @ 100 MHz
Current Rating (Max)：10A
DC Resistance (DCR) (Max)：3mOhm
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 125°C
Package / Case：0805 (2012 Metric)
Mounting Type：Surface Mount
Height (Max)：0.043" (1.10mm)
Size / Dimension：0.087" L x 0.047" W (2.20mm x 1.20mm)
Features：-

Download product information

742792030

Overview

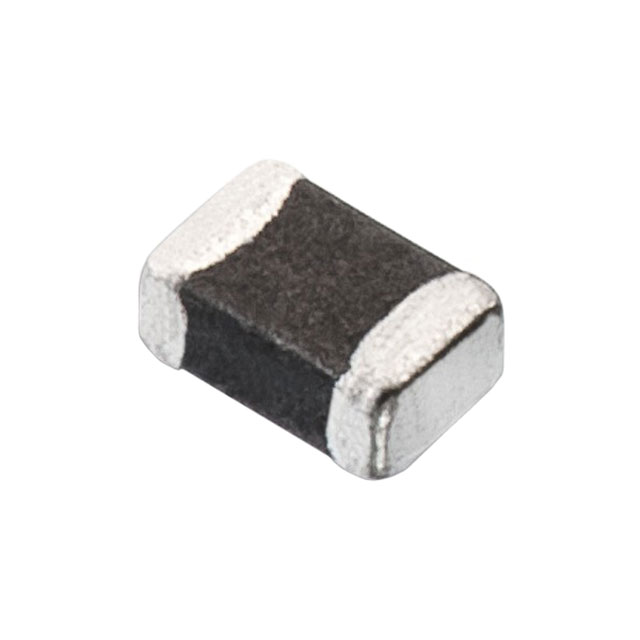

The Würth Elektronik 742792030 is a surface-mount EMI suppression ferrite bead from the WE-CBF series, housed in an 0805 (2012 metric) package. It provides a nominal impedance of 30 Ohms at 100 MHz with a maximum DC resistance of 3 mOhms. The component supports a maximum DC current of 10 A and operates within a temperature range of -55°C to +125°C. It is qualified under AEC-Q200 standards for automotive applications.

Feature Summary

High current handling capability suitable for power line filtering
Automotive grade qualification ensuring reliability in harsh environments
Low DC resistance minimizes voltage drop and power loss

Applications

Automotive electronics power distribution networks
General electronic equipment EMI suppression
Battery pack circuits and battery charger inputs

Procurement Notes

Verify the specific impedance value and current rating against the official datasheet before procurement, as high-current ferrite beads may have variants with different electrical characteristics. Confirm that the 0805 package size aligns with your PCB footprint requirements. Ensure the supplier provides documentation confirming AEC-Q200 compliance if the application mandates automotive-grade certification.

Selection Notes

Select this component when designing circuits requiring significant current capacity alongside noise suppression. The low DC resistance makes it appropriate for power rails where efficiency is critical. Consider the thermal performance at full load current to ensure the operating temperature remains within the specified limits during continuous operation.

Part Context

This part belongs to the WE-CBF family of SMT EMI suppression ferrite beads manufactured by Würth Elektronik. These components are designed to attenuate high-frequency noise in electronic circuits while maintaining signal integrity. The series offers various impedance and current ratings to suit diverse filtering needs across consumer and industrial sectors.
