Product Detailed Parameters
- Description：FERRITE BEAD 100 OHM 3312 1LN
- Series：WE-MPSB
- Mfr：Würth Elektronik
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：100 Ohms @ 100 MHz
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：4mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：3312 (8531 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.098" (2.48mm)
- Size / Dimension：0.335" L x 0.120" W (8.50mm x 3.05mm)
- Features：-
Download product information
Overview

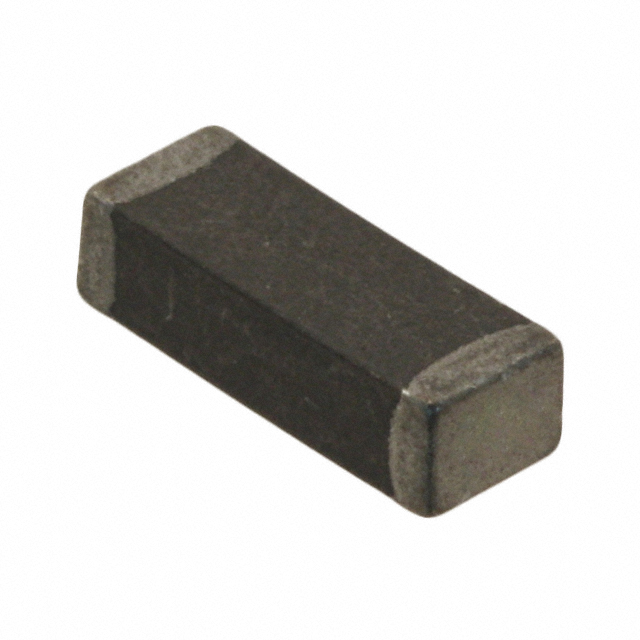

The Wurth Elektronik 74279225101 is a surface-mount EMI suppression ferrite bead from the WE-MPSB series. It provides an impedance of 100 Ohms at a test frequency of 100 MHz. The component is housed in a 3312 (8832 metric) package and is rated for a maximum DC current of 1A. It meets AEC-Q200 automotive qualification standards, ensuring reliability for demanding electronic applications.
Feature Summary
- Provides effective electromagnetic interference suppression through high impedance characteristics at target frequencies.
- Automotive-grade construction compliant with AEC-Q200 reliability standards for robust performance.
- Designed for surface-mount technology to facilitate automated assembly processes.
Applications
- Automotive electronics requiring AEC-Q200 compliance
- General-purpose EMI suppression in digital circuits
- Power line filtering in compact electronic modules
Procurement Notes
Verify the specific impedance value and package dimensions against the official manufacturer datasheet before procurement. Confirm that the AEC-Q200 qualification status aligns with your project's automotive or industrial requirements. Ensure compatibility with standard surface-mount reflow soldering profiles during integration planning.
Selection Notes
Select this component when a 100 Ohm impedance at 100 MHz is required within a 3312 footprint. Consider the 1A current rating to ensure it does not saturate under operating conditions. Verify that the AEC-Q200 certification is necessary for the target application environment.
Part Context
This part belongs to the WE-MPSB series of ferrite beads manufactured by Wurth Elektronik. These components are engineered for high-performance noise suppression in space-constrained designs. The series supports various impedance values and current ratings to suit diverse circuit protection needs.
Replacement Considerations
Cross-reference with other Wurth Elektronik WE-MPSB variants offering similar impedance and package size. Verify equivalent AEC-Q200 qualification if substituting in automotive contexts. Ensure current handling capabilities match the original design specifications.
