74405020015

$0.51

Description：FIXED IND 1.5UH 1.4A 132MOHM SMD
Series：WE-LQSH
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:96a100b0ca3a Category: Fixed Inductors Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

74405020015 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is FIXED IND 1.5UH 1.4A 132MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for 74405020015

Description：FIXED IND 1.5UH 1.4A 132MOHM SMD
Series：WE-LQSH
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：1.5 µH
Tolerance：±20%
Current Rating (Amps)：1.4 A
Current - Saturation (Isat)：2.3A
Shielding：Shielded
DC Resistance (DCR)：132mOhm Max
Q @ Freq：-
Frequency - Self Resonant：74MHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：1 MHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：SMD
Size / Dimension：0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for 74405020015

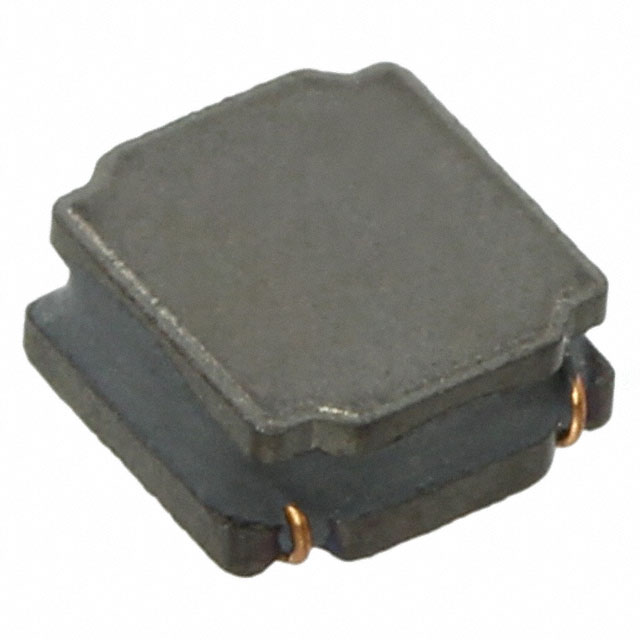

74405020015

Fixed Inductors Overview

The Würth Elektronik 74405020015 is a surface-mount power inductor from the WE-LQSH series. It features a ferrite drum core and wirewound construction with shielded design. The component provides an inductance of 1.5 µH with a tolerance of ±20%. It supports a maximum DC current of 1.4 A and a saturation current of 2.3 A. The maximum DC resistance is 132 mOhms, and the self-resonant frequency is 68 MHz. Operating temperature range spans from -40°C to +125°C.

Fixed Inductors Feature Summary

Shielded magnetic structure minimizes electromagnetic interference coupling
Ferrite drum core enables high saturation performance for power applications
Wirewound technology ensures stable inductance characteristics under load

Fixed Inductors Applications

DC-DC converter output filtering
Point-of-load regulation stages
General power supply input/output chokes

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Wurth Elektronik documentation to confirm electrical parameters and package dimensions. Ensure that the ordered component matches the required inductance value and current ratings for the target circuit design. Cross-reference datasheet specifications for thermal performance and mounting requirements prior to integration.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor with moderate current handling is required. The 2010 footprint offers a balance between size and power capability. Consider the saturation current margin relative to peak load conditions. Evaluate the DC resistance impact on overall efficiency for low-voltage high-current designs.

Fixed Inductors Part Context

This part belongs to the WE-LQSH series of tiny power inductors designed for space-constrained electronics. The series utilizes a composite shielding technique to reduce external magnetic fields. It targets modern portable devices and industrial control systems requiring reliable SMD power components.
