Product Detailed Parameters
- Description：CMC 450MA 2LN 120OHM SMD AECQ200
- Series：WE-CNSW
- Mfr：Würth Elektronik
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：450mA
- DC Resistance (DCR) (Max)：175mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 105°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.063" L x 0.033" W (1.60mm x 0.85mm)
- Height (Max)：0.047" (1.20mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：120 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

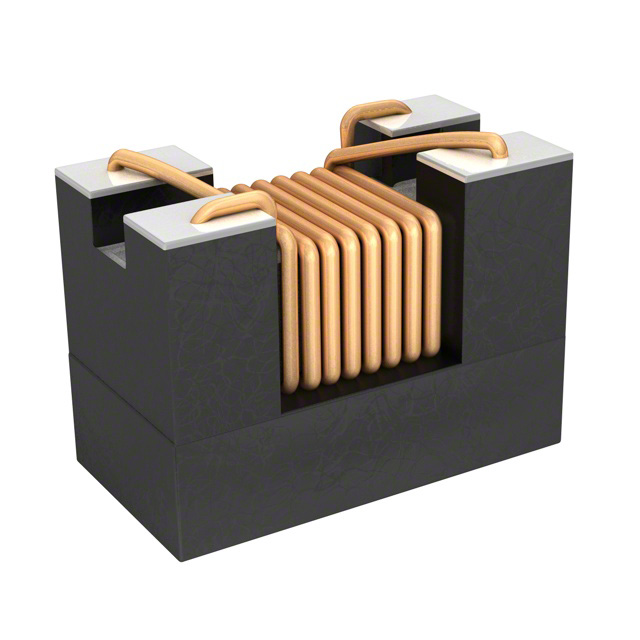

The Würth Elektronik 744230121 is a surface-mount common mode line filter from the WE-CNSW series, designed for signal line applications. It features an inductance of 166 nH and offers an impedance of 120 Ohms at 100 MHz. The component supports a maximum DC current of 450 mA with a maximum DC resistance of 175 mOhms. It operates within a temperature range of -40°C to +105°C and holds AEC-Q200 qualification. The device is housed in a compact 0603 (1.60mm x 0.85mm) package with a maximum height of 1.20 mm.
Feature Summary
- Provides effective common mode noise suppression for high-speed signal lines
- AEC-Q200 qualified for automotive reliability standards
- Compact surface-mount footprint suitable for space-constrained PCBs
Applications
- Automotive infotainment systems
- High-speed data interface protection
- Signal line filtering in electronic control units
Procurement Notes
Verify the specific ordering suffix to ensure correct packaging configuration, such as cut tape or reel quantities. Confirm RoHS compliance status through official manufacturer documentation before integration. Ensure the selected variant matches the required impedance and current ratings for the target circuit design.
Selection Notes
Select this component when designing circuits requiring low inductance for high-frequency signal integrity alongside common mode noise reduction. The 120 Ohm impedance at 100 MHz makes it suitable for USB and other high-speed interfaces. Consider the 450 mA current rating to ensure adequate headroom for the application's operational requirements.
Part Context
This part belongs to the WE-CNSW series of SMD common mode line filters by Würth Elektronik. These components are engineered for signal line applications where minimal insertion loss is critical. The series provides various impedance options to match different frequency attenuation requirements while maintaining a small physical profile.
Replacement Considerations
Check for direct substitutes within the WE-CNSW series that offer similar impedance characteristics. Verify pin compatibility and thermal performance if replacing with components from other manufacturers. Ensure any alternative meets the same AEC-Q200 qualification if used in automotive contexts.
