Product Detailed Parameters
- Description：CMC 100UH 350MA 2LN 50 KOHM SMD
- Series：WE-SCC
- Mfr：Würth Elektronik
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power, Signal Line
- Number of Lines：2
- Current Rating (Max)：350mA
- DC Resistance (DCR) (Max)：950mOhm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.287" L x 0.287" W (7.30mm x 7.30mm)
- Height (Max)：0.189" (4.80mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：100 µH @ 100 kHz
- Impedance @ Frequency：50 kOhms @ 7 MHz
- Qualification：-
- Grade：-
Download product information
Overview

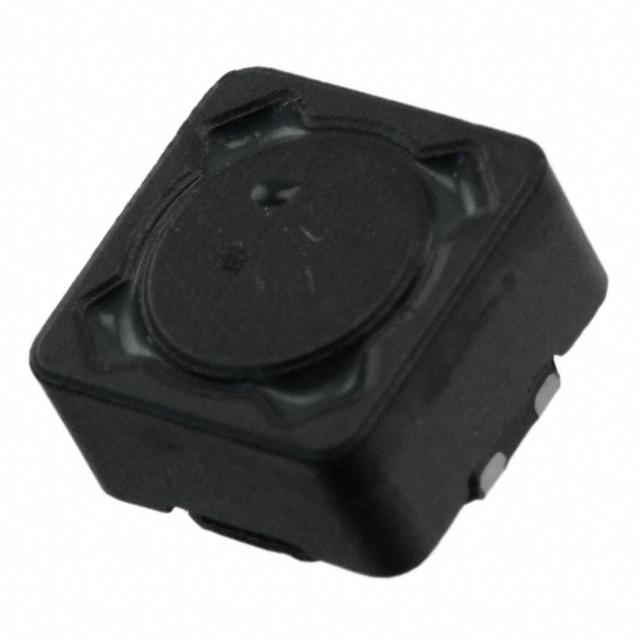

The Würth Elektronik 744281101 is a surface-mount common mode filter choke from the WE-SCC series. It features an inductance of 100 µH and an impedance of 50 kΩ at 7 MHz. The component supports a maximum DC current of 350 mA with a maximum DC resistance of 950 mΩ. Designed for automotive reliability, it meets AEC-Q200 standards. The physical dimensions are 7.3 mm x 7.3 mm x 4.8 mm, housed in a 7345 package.
Feature Summary
- Provides common mode noise suppression for signal lines
- Automotive qualified to AEC-Q200 standards
- Compact surface-mount design for space-constrained PCBs
Applications
- Automotive infotainment systems
- Vehicle communication bus interfaces
- High-speed data line filtering
Procurement Notes
Verify the specific manufacturer datasheet for the latest electrical tolerances and thermal characteristics. Confirm that the 7345 footprint matches your PCB layout constraints. Ensure the selected component variant aligns with your required operating temperature range and current ratings for the final assembly.
Selection Notes
Select this component when designing circuits requiring common mode noise attenuation for high-speed signals. The 100 µH inductance offers effective filtering at lower frequencies, while the 50 kΩ impedance targets higher frequency interference. Consider the 350 mA current rating to ensure adequate headroom for the application's peak operational demands without saturation.
Part Context
This part belongs to the WE-SCC series of Stromkompensierter SMD Line Filters. These components are engineered specifically for automotive electronics applications where robust noise immunity and compact form factors are critical. The series utilizes ferrite core technology to achieve high impedance values within a small surface-mount package.
Replacement Considerations
Cross-reference with other WE-SCC series variants if different inductance or current ratings are needed. Verify pin compatibility and mechanical dimensions before substituting with components from other manufacturers to ensure proper fit and function on the existing PCB.
