744282100

$2.52

Description：CMC 10UH 2.25A 2LN 9 KOHM SMD
Series：WE-SCC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:0c2acafec556 Category: Common Mode Chokes Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 10UH 2.25A 2LN 9 KOHM SMD
Series：WE-SCC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power, Signal Line
Number of Lines：2
Current Rating (Max)：2.25A
DC Resistance (DCR) (Max)：50mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max)：0.256" (6.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：10 µH @ 100 kHz
Impedance @ Frequency：9 kOhms @ 20 MHz
Qualification：-
Grade：-

Download product information

744282100

Overview

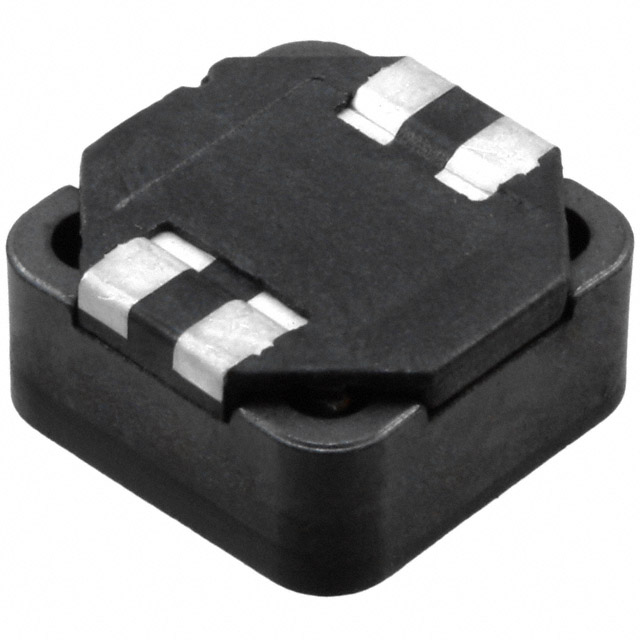

The Würth Elektronik 744282100 is a surface-mount common mode filter belonging to the WE-SCC series. It features a 1260 package with dimensions of 12.5mm x 12.5mm x 6.5mm. The component provides an inductance of 10µH and supports a rated current of 2250mA. It operates effectively at a test frequency of 100kHz. The device is designed for robust performance within an operating temperature range from -40°C to +125°C.

Feature Summary

Provides effective common mode noise suppression for differential signal lines
Utilizes a compact surface-mount design suitable for automated assembly
Engineered for high current handling capabilities in power applications

Applications

Power supply input filtering
Differential data line protection
EMI suppression in industrial equipment

Procurement Notes

Verify the specific package dimensions and electrical ratings against your schematic requirements before ordering. Confirm that the operating temperature range meets your environmental specifications. Ensure compatibility with your PCB footprint and reflow soldering profile. Check for any recent product change notifications regarding material composition or manufacturing location changes.

Selection Notes

Select this component when a high-current common mode choke is required for space-constrained designs. The 1260 package offers a balance between size and power handling. Consider the 10µH inductance value for your target noise frequencies. Evaluate the 2250mA rating against your maximum load current to ensure adequate margin. Compare thermal performance if operating near the upper temperature limit.

Part Context

This part belongs to the WE-SCC series of Stromkompensierter SMD Line Filters from Würth Elektronik. These components are designed as high-performance microcontroller-compatible filters for embedded applications. The series focuses on providing reliable EMI suppression in modern electronic systems requiring compact form factors.
