744284102

$2.87

Description：CMC 1MH 300MA 2LN 160 KOHM SMD
Series：WE-SCC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:568f9d7e467d Category: Common Mode Chokes Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1MH 300MA 2LN 160 KOHM SMD
Series：WE-SCC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power, Signal Line
Number of Lines：2
Current Rating (Max)：300mA
DC Resistance (DCR) (Max)：2.5Ohm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max)：0.413" (10.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：1 mH @ 100 kHz
Impedance @ Frequency：160 kOhms @ 1 MHz
Qualification：-
Grade：-

Download product information

744284102

Overview

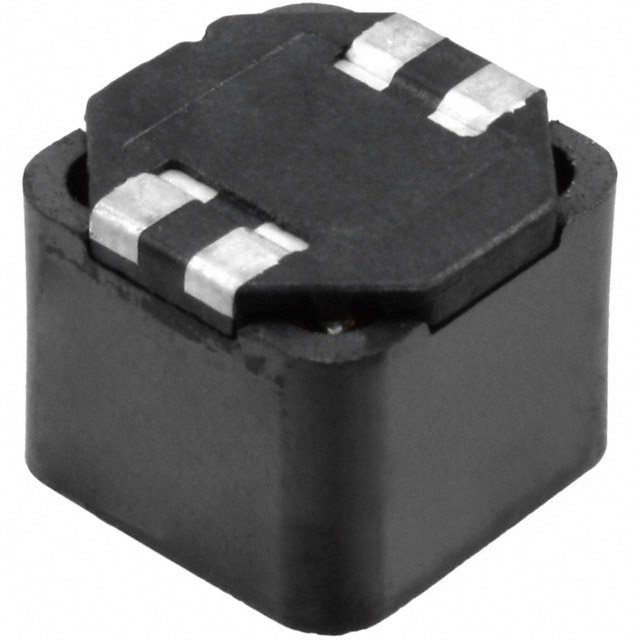

The Würth Elektronik 744284102 is a Stromkompensierter SMD Line Filter from the WE-SCC series. It features an inductance of 1 mH and a DC current rating of 300 mA. The component has a common mode impedance of 160 kohm at 100 kHz. Its physical dimensions are 12.5 mm x 12.5 mm x 10.5 mm, utilizing a surface mount design.

Feature Summary

Stromkompensated SMD line filter architecture
High common mode impedance for noise suppression
Compact surface mount footprint

Applications

Power supply input filtering
EMI suppression in electronic circuits
Signal line protection

Procurement Notes

Verify the specific part number against official Wurth Elektronik documentation to confirm technical specifications. Ensure compatibility with your circuit requirements regarding current ratings and impedance characteristics before procurement.

Selection Notes

Select this component for applications requiring effective common mode noise reduction in space-constrained designs. Consider the 300 mA current rating and 1 mH inductance when designing power or signal lines that need filtering without significant voltage drop.

Part Context

This component belongs to the WE-SCC series of Stromkompensierten SMD Line Filters by Würth Elektronik. These filters are designed for efficient electromagnetic interference suppression in compact electronic devices, offering high performance in a small form factor suitable for modern PCB layouts.

Replacement Considerations

Consult official Wurth Elektronik resources for verified substitute part numbers. Ensure any replacement matches the electrical specifications and physical dimensions to maintain circuit integrity.
