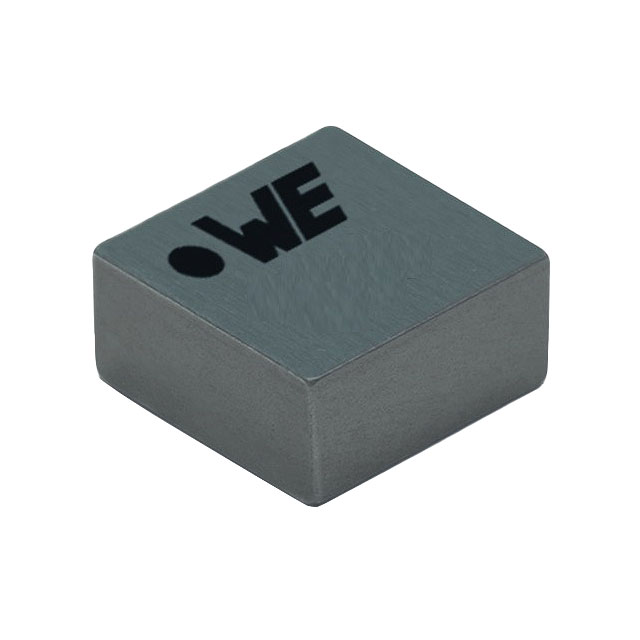

744383360068HT

$1.24

Description：HIGH TEMP POWER INDUCTOR 3020; 0
Series：WE-MAPI
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:39cc81384c91 Category: Fixed Inductors Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

744383360068HT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is HIGH TEMP POWER INDUCTOR 3020; 0. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for 744383360068HT

Description：HIGH TEMP POWER INDUCTOR 3020; 0
Series：WE-MAPI
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Wirewound
Material - Core：Iron Alloy
Inductance：680 nH
Tolerance：±30%
Current Rating (Amps)：6.4 A
Current - Saturation (Isat)：6.7A
Shielding：Shielded
DC Resistance (DCR)：28.1mOhm Max
Q @ Freq：-
Frequency - Self Resonant：85MHz
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 150°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：1212 (3030 Metric)
Supplier Device Package：1212
Size / Dimension：0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)：0.079" (2.00mm)
Features：-

Fixed Inductors datasheet and documents for 744383360068HT

744383360068HT

Fixed Inductors Overview

The Würth Elektronik 744383360068HT is a shielded surface-mount power inductor from the WE-MAPI series. It features an inductance of 0.68 µH with a tolerance of ±30%. The component has a maximum DC resistance of 28.1 mΩ and a saturation current of 6.7 A. It operates within a temperature range of -40°C to +150°C. The package dimensions are 3.0 mm x 2.0 mm x 2.0 mm.

Fixed Inductors Feature Summary

Shielded construction minimizes electromagnetic interference
High thermal stability for demanding environments
Compact surface-mount footprint

Fixed Inductors Applications

Point-of-load conversion
DC/DC converter circuits
Power supply filtering

Fixed Inductors Procurement Notes

Verify the specific suffix HT indicates high-temperature rating compliance. Confirm the manufacturer part number matches exactly 744383360068HT. Check RoHS certification status if required by project specifications. Ensure the supplier provides official datasheets for parameter validation.

Fixed Inductors Selection Notes

Select this component for applications requiring compact shielding and high-temperature operation. The 0.68 µH value suits high-frequency switching converters. Consider the 6.7 A saturation current against peak load requirements. The small 3020HT package fits space-constrained PCB layouts.

Fixed Inductors Part Context

This part belongs to the WE-MAPI series of high-power shielded inductors. It is designed for surface-mount technology (SMT) assembly. The series targets efficient power management in modern electronic devices. Würth Elektronik manufactures these components for industrial and consumer applications.
