Product Detailed Parameters
- Description：CMC 700UH 4A 2LN TH
- Series：WE-LF
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：4A
- DC Resistance (DCR) (Max)：27mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.709" W (18.00mm x 18.00mm)
- Height (Max)：0.512" (13.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：700 µH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

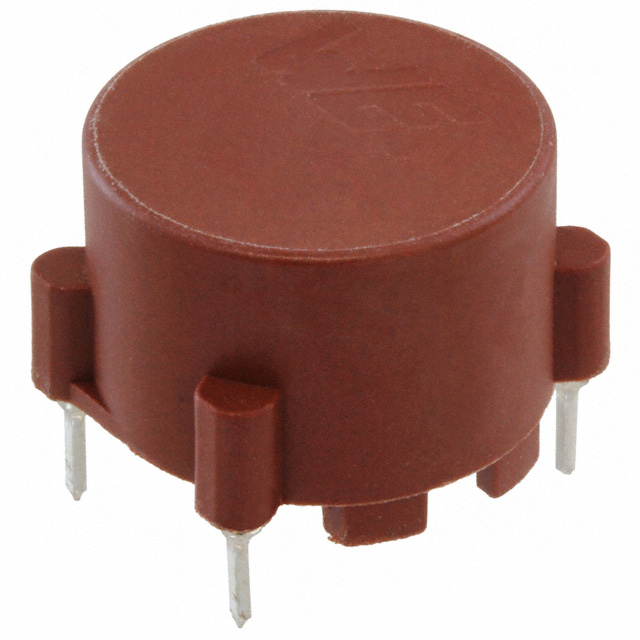

The Würth Elektronik 74466240007 is a current-compensated common mode choke from the WE-LF series. It features an inductance of 700 µH and supports a DC current rating of 4 A with a maximum DC resistance of 0.027 ohms. The component operates within a temperature range of -40°C to +125°C. Its physical dimensions are 18.00 mm x 18.00 mm x 13.00 mm, utilizing a horizontal package with four PC pins for through-hole mounting.
Feature Summary
- Current-compensated design for power line applications
- Effective suppression of common-mode noise
- Robust construction suitable for demanding environments
Applications
- Power electronics circuits
- Common-mode noise suppression
- Power line filtering
Procurement Notes
Verify the specific part number against official Wurth Elektronik documentation to ensure accuracy. Confirm that the required electrical parameters, such as inductance and current ratings, align with your circuit design requirements before procurement.
Selection Notes
Select this component when designing power supplies or electronic systems requiring effective common-mode interference reduction. Ensure the 4 A current rating and 700 µH inductance meet the specific performance needs of the application.
Part Context
This component belongs to the WE-LF series by Wurth Elektronik, specialized for handling high currents while maintaining low impedance characteristics. It is engineered for reliability in industrial and commercial power management contexts.
Replacement Considerations
Consult official Wurth Elektronik resources for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without validating electrical specifications and physical dimensions.
