Product Detailed Parameters
- Description：CMC 5.6MH 2.4A 2LN TH
- Series：WE-LF
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2.4A
- DC Resistance (DCR) (Max)：100mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.122" L x 1.122" W (28.50mm x 28.50mm)
- Height (Max)：0.669" (17.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：5.6 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

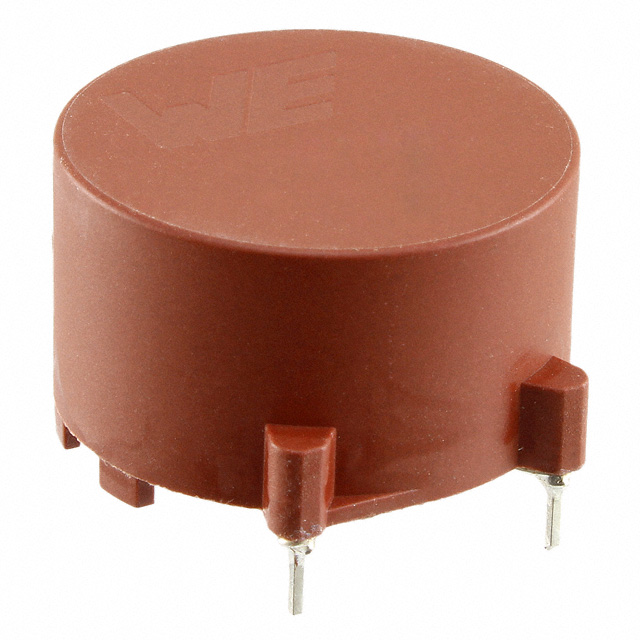

The Würth Elektronik 7446823006 is a through-hole common mode choke belonging to the WE-LF Type LH series. It features a ferrite core with an inductance of 5.6 mH at 10 kHz and a maximum current rating of 2.4 A. The component has a DC resistance of 100 mΩ per line and operates within a temperature range of -40°C to +125°C. Designed for general electronic equipment, it provides effective noise suppression in power line applications.
Feature Summary
- Shielded magnetic design for effective common mode noise attenuation
- Through-hole construction suitable for robust mechanical mounting
- High saturation current capability for stable performance under load
Applications
- Power line filtering in general electronic equipment
- Noise suppression in AC/DC converter inputs
- EMI reduction in industrial control systems
Procurement Notes
Verify the specific datasheet version from Würth Elektronik to confirm RoHS compliance status and detailed mechanical dimensions. Ensure the through-hole package style matches the target PCB layout requirements. Cross-reference the 2.4 A current rating against actual operating conditions to prevent thermal issues during procurement validation.
Selection Notes
Select this component when high inductance values are required for low-frequency noise filtering in through-hole designs. The 100 mΩ DC resistance minimizes voltage drop compared to higher resistance alternatives. Consider the 5.6 mH value for applications requiring significant common mode impedance at 10 kHz frequencies.
Part Context
This part belongs to the WE-LF Type LH series of common mode chokes manufactured by Würth Elektronik. The series is characterized by high inductance values and through-hole packaging options. These components are engineered for general electronic equipment applications where reliable noise suppression is critical for electromagnetic compatibility.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify electrical parameters such as inductance, current rating, and DC resistance before considering alternative manufacturers or series.
