744765075GA

Fixed Inductors Overview

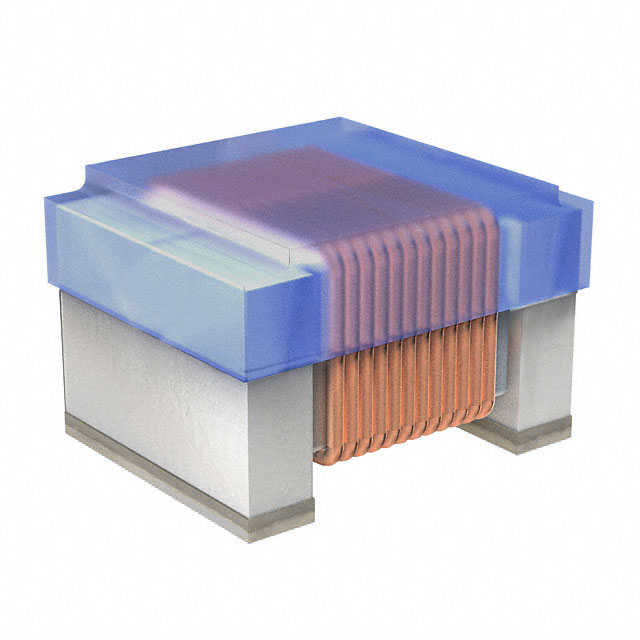

The Würth Elektronik 744765075GA is an unshielded RF inductor from the WE-KI series, housed in a compact 0402 (1005 metric) surface-mount package. It features a wirewound construction with a ceramic core, providing an inductance of 7.5 nH and a tight tolerance of ±2%. The component supports a maximum DC current of 680 mA with a maximum DC resistance of 104 mOhms. Certified to AEC-Q200 standards, it operates within a temperature range of -40°C to +125°C, offering a self-resonant frequency of 3.28 GHz and a minimum Q factor of 26.

Fixed Inductors Feature Summary

• AEC-Q200 qualified for automotive reliability requirements
• Unshielded design minimizes magnetic interference coupling
• Compact 0402 footprint suitable for high-density PCB layouts

Fixed Inductors Applications

• RF matching networks in wireless communication modules
• Impedance matching circuits in mobile devices
• Filtering components in RF signal paths

Fixed Inductors Procurement Notes

Verify the specific ordering suffix 'GA' against official Wurth Elektronik documentation to ensure correct variant selection. Confirm that the AEC-Q200 qualification status aligns with target application requirements. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and technical specifications before procurement.

Fixed Inductors Selection Notes

Select this component when a low-inductance, unshielded RF solution is required in a minimal 0402 package. Ensure the operating environment stays within the specified -40°C to +125°C range. Verify that the 680 mA current rating and 104 mOhms DCR meet circuit power handling needs. Consider the unshielded nature for layout planning to prevent magnetic interaction with nearby components.

Fixed Inductors Part Context

This part belongs to the WE-KI series of RF inductors, designed specifically for radio frequency applications. The series emphasizes small form factors and high-frequency performance. The 744765075GA represents a standard value within this lineup, utilizing wirewound technology on a ceramic core to achieve stable inductance at GHz frequencies.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official Wurth Elektronik documentation or authorized distributors for verified cross-references.
