7447797180

$2.44

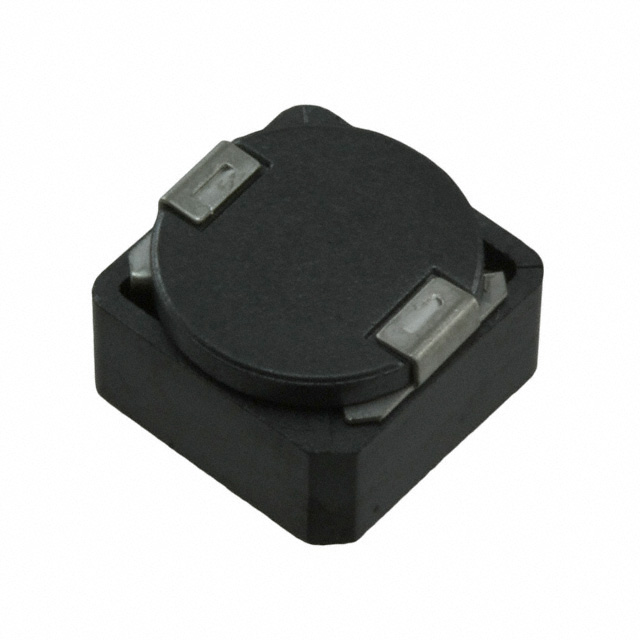

Description：FIXED IND 1.8UH 9.4A 8.4MOHM SMD
Series：WE-PDF
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2ef95f1b8204 Category: Fixed Inductors Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

7447797180 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is FIXED IND 1.8UH 9.4A 8.4MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for 7447797180

Description：FIXED IND 1.8UH 9.4A 8.4MOHM SMD
Series：WE-PDF
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Nickel Zinc Ferrite (NiZn)
Inductance：1.8 µH
Tolerance：±20%
Current Rating (Amps)：9.4 A
Current - Saturation (Isat)：13A
Shielding：Shielded
DC Resistance (DCR)：8.4mOhm Max
Q @ Freq：-
Frequency - Self Resonant：86MHz
Ratings：-
Operating Temperature：-40°C ~ 150°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max)：0.177" (4.50mm)
Features：-
