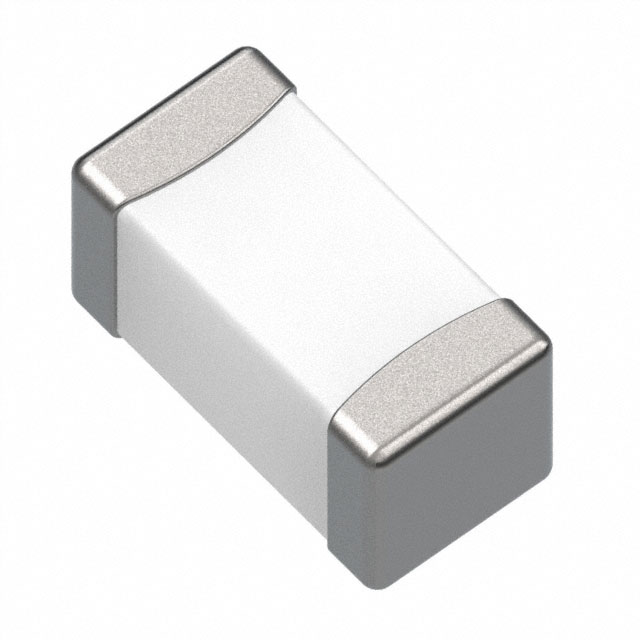

744786068A

$0.16

Description：FIXED IND 6.8NH 500MA 300MOHM SM
Series：WE-MK
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3f71f990c7e7 Category: Fixed Inductors Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

744786068A is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is FIXED IND 6.8NH 500MA 300MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for 744786068A

Description：FIXED IND 6.8NH 500MA 300MOHM SM
Series：WE-MK
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Multilayer
Material - Core：Ceramic
Inductance：6.8 nH
Tolerance：±5%
Current Rating (Amps)：500 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：300mOhm Max
Q @ Freq：8 @ 100MHz
Frequency - Self Resonant：5GHz
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric)
Supplier Device Package：0603 (1608 Metric)
Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)：0.037" (0.95mm)
Features：-

Fixed Inductors datasheet and documents for 744786068A

744786068A

Fixed Inductors Overview

The Würth Elektronik 744786068A is a surface-mount RF inductor from the WE-MK series, housed in a 0603 (1608 metric) package. It features a ceramic core and shielded construction with a nominal inductance of 6.8 nH and a tolerance of 5%. The component supports a maximum DC current of 300 mA and has a maximum DC resistance of 300 mOhms. It operates within a temperature range of -55°C to +125°C and achieves a self-resonant frequency of 5 GHz.

Fixed Inductors Feature Summary

Shielded multilayer ceramic structure for electromagnetic interference suppression
High-frequency performance optimized for RF signal integrity
Automotive-grade reliability certified under AEC-Q200 standards

Fixed Inductors Applications

RF circuit filtering and impedance matching
High-frequency signal processing stages
Automotive electronics systems requiring AEC-Q200 compliance

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official Wurth Elektronik documentation to ensure correct electrical parameters and packaging configuration. Confirm that the component meets all required automotive qualification standards if intended for vehicle applications. Cross-reference datasheet specifications with design requirements prior to final procurement decisions.

Fixed Inductors Selection Notes

Select this component for applications requiring compact SMD RF inductors with high self-resonant frequencies. The 0603 footprint suits space-constrained PCB layouts. Ensure the 300 mA current rating aligns with circuit load requirements. Consider the shielded design for environments sensitive to magnetic coupling or noise interference.

Fixed Inductors Part Context

This part belongs to the WE-MK series of multilayer ceramic SMT inductors manufactured by Würth Elektronik. The series is designed for high-frequency applications, offering various inductance values in standard surface-mount packages. The 744786068A specifically targets RF circuits needing low inductance and high Q-factor characteristics within an automotive-qualified form factor.
