Product Detailed Parameters
- Description：CMC 11MH 900MA 2LN TH
- Series：WE-CMBNC
- Mfr：Würth Elektronik
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：900mA
- DC Resistance (DCR) (Max)：430mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.551" L x 0.295" W (14.00mm x 7.50mm)
- Height (Max)：0.630" (16.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：11 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

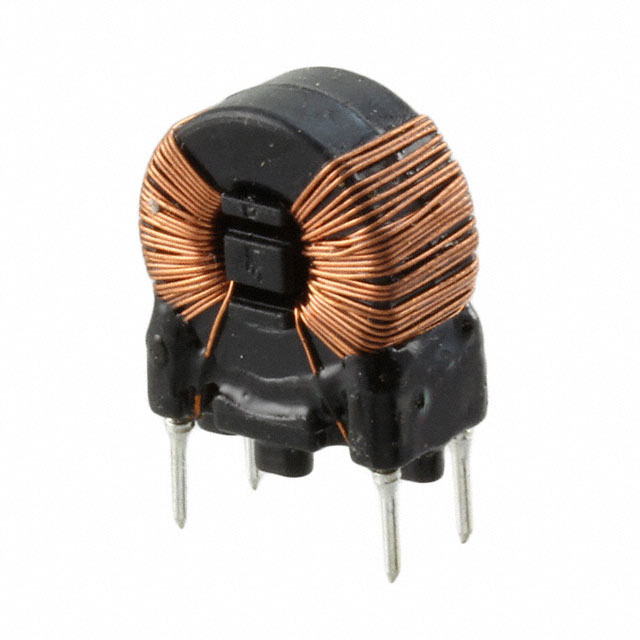

The Würth Elektronik 7448010911 is a WE-CMBNC series common mode power line choke utilizing nanocrystalline core technology. It features an inductance of 11 mH and supports a maximum DC current of 900 mA with a maximum DC resistance of 0.43 ohms. Designed for through-hole mounting, this unshielded component operates within a temperature range of -40°C to +125°C.
Feature Summary
- Utilizes nanocrystalline material for high-performance common mode noise suppression
- Designed for power line applications requiring significant inductance
- Supports through-hole PCB mounting for robust mechanical attachment
Applications
- Power supply input filtering
- AC/DC converter EMI suppression
- Industrial equipment power lines
Procurement Notes
Verify the specific nanocrystalline construction and 11 mH inductance rating against design requirements. Confirm through-hole pin compatibility and thermal limits for the intended operating environment. Ensure the 900 mA current rating meets peak load demands without saturation.
Selection Notes
Select this component when high inductance is required for low-frequency noise attenuation in power lines. The nanocrystalline core offers superior performance compared to standard ferrite for specific frequency ranges. Ensure the physical size accommodates the through-hole footprint on the target PCB layout.
Part Context
This part belongs to the WE-CMBNC series from Würth Elektronik, specialized for common mode chokes using nanocrystalline materials. This series targets applications demanding high inductance values and effective electromagnetic interference reduction in power circuits.
FAQ
What core material is used in the 7448010911?
The component uses a nanocrystalline core material.
Is the 7448010911 shielded?
No, the component is unshielded.
