Product Detailed Parameters
- Description：CMC 8MH 1A 2LN TH
- Series：WE-CMBNC
- Mfr：Würth Elektronik
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：330mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.551" L x 0.295" W (14.00mm x 7.50mm)
- Height (Max)：0.630" (16.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：8 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

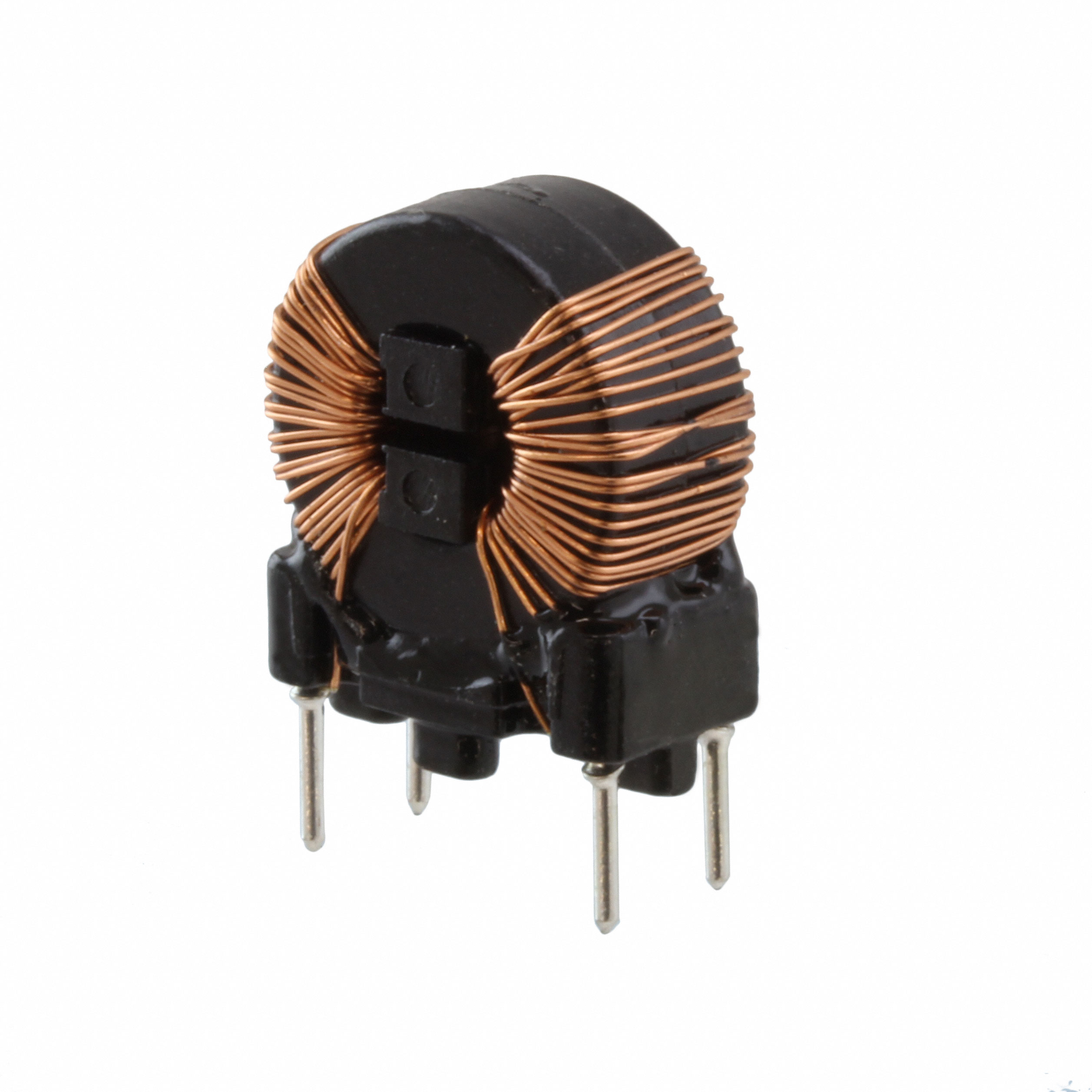

The Würth Elektronik 7448011008 is a WE-CMBNC Type XS Nano Crystal common mode choke designed for PCB mounting via through-hole technology. It features a single channel with an inductance of 8 mH at a test frequency of 10 kHz, tolerances of -30% to +50%, and a maximum DC current rating of 1 A. The component has a maximum DC resistance of 330 mΩ, operates between -40°C and +125°C, and measures 14 mm x 7.5 mm x 16 mm.
Feature Summary
- Utilizes Nano Crystal material for high magnetic performance
- Designed for efficient suppression of common mode noise
- Supports reliable operation across extended temperature ranges
Applications
- Power line filtering in electronic circuits
- EMI suppression in industrial equipment
- Noise reduction in automotive electronics
Procurement Notes
Verify the specific part number against official manufacturer documentation to ensure compatibility with design requirements. Confirm that the through-hole package dimensions and pin configuration match the target PCB layout. Check for any recent product change notifications or environmental compliance updates relevant to the manufacturing batch.
Selection Notes
Select this component when a high-inductance common mode choke is required for low-current applications up to 1 A. The 8 mH value provides significant attenuation at lower frequencies. Ensure the physical footprint fits the available board space and that the through-hole assembly process aligns with manufacturing capabilities.
Part Context
This component belongs to the WE-CMBNC series from Würth Elektronik, which specializes in common mode chokes using advanced magnetic materials. The series offers various inductance values and current ratings to suit different power line filtering needs across multiple industries.
Replacement Considerations
Consult official Wurth Elektronik substitution guides for verified alternatives within the WE-CMBNC family. Ensure any substitute matches the 8 mH inductance, 1 A current rating, and through-hole package constraints.
