7448023005

Overview

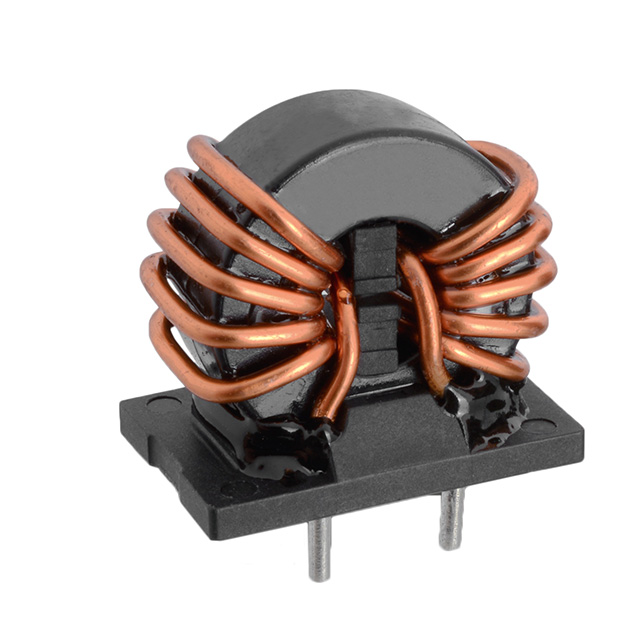

The Würth Elektronik 7448023005 is a through-hole common mode filter choke from the WE-CMBNC series. It features a nanocrystalline core and provides an inductance of 5 mH at 10 kHz. The component has a maximum DC resistance of 40 mOhms and supports a current rating of 3 A. It operates within a temperature range of -40°C to +125°C and carries a voltage rating of 250 V AC.

Feature Summary

• Utilizes nanocrystalline core technology for effective noise suppression
• Designed for power electronics applications
• Through-hole mounting configuration

Applications

• Power electronics circuits
• Common-mode noise suppression
• Power line filtering

Procurement Notes

Verify the manufacturer part number 7448023005 against official Wurth Elektronik documentation to ensure authenticity. Confirm that the nanocrystalline core specifications and electrical ratings match the design requirements. Check for any specific handling instructions related to the through-hole package and operating temperature limits during assembly.

Selection Notes

Select this component when designing power electronics requiring common-mode noise reduction with a 5 mH inductance. Ensure the circuit current does not exceed 3 A and the operating environment stays within -40°C to +125°C. The through-hole format is suitable for PCBs supporting this mounting style.

Part Context

This component belongs to the WE-CMBNC series, which are common mode power line inductors manufactured by Würth Elektronik. These devices are engineered to suppress electromagnetic interference in power lines, utilizing advanced core materials for high performance in compact through-hole packages.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
