Product Detailed Parameters
- Description：CMC 9MH 5A 2LN TH
- Series：WE-CMBNC
- Mfr：Würth Elektronik
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：32mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：300V
- Operating Temperature：-55° C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.906" L x 0.531" W (23.00mm x 13.50mm)
- Height (Max)：1.024" (26.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：9 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

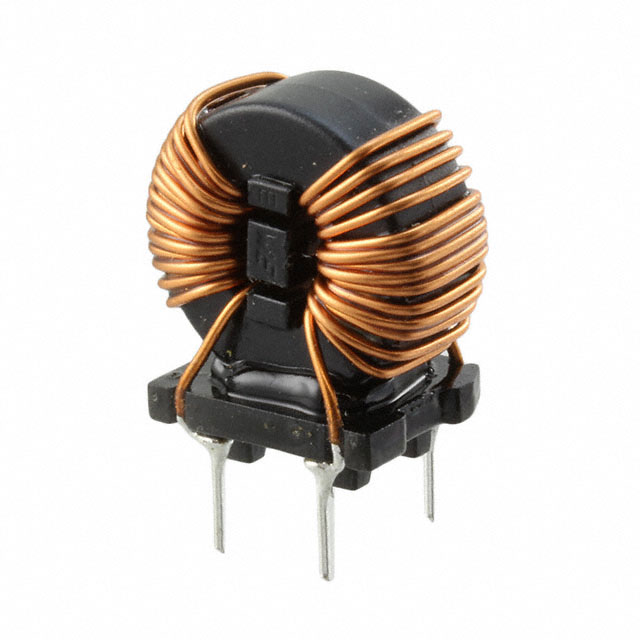

The Würth Elektronik WE-CMBNC 7448030509 is a through-hole common mode choke designed for general electronic equipment. It features a nominal inductance of 9 mH measured at 10 kHz and supports a current rating of 5 A. The component exhibits a maximum DC resistance (DCR) of 32 mOhms. It utilizes Nancrystl technology for efficient noise suppression. The physical dimensions are 22.00 mm in length and 13.50 mm in width, suitable for standard PCB mounting applications requiring robust electromagnetic interference filtering.
Feature Summary
- Utilizes Nancrystl technology for effective common mode noise suppression
- Designed for through-hole mounting on printed circuit boards
- Supports high current handling capabilities up to 5 A
Applications
- General electronic equipment power line filtering
- Common mode noise suppression in two-line circuits
- Electromagnetic interference mitigation in industrial electronics
Procurement Notes
Verify the specific part number 7448030509 against official Würth Elektronik datasheets to confirm technical specifications. Ensure compatibility with required current ratings and inductance values for the target application. Cross-reference manufacturer documentation for accurate RoHS compliance status and environmental operating conditions before procurement.
Selection Notes
Select this component when a 9 mH inductance at 10 kHz is required for common mode noise reduction. Consider the 5 A current rating and 32 mOhm DCR for power loss calculations. Evaluate the through-hole package size of 22.00 mm x 13.50 mm against available PCB space constraints. Confirm suitability for the intended voltage rating of 250 V AC.
Part Context
This component belongs to the WE-CMBNC series of common mode chokes manufactured by Würth Elektronik. The series employs Nancrystl technology to provide reliable noise filtering solutions. These components are engineered for use in general electronic equipment where effective electromagnetic interference suppression is necessary for stable operation.
Replacement Considerations
Consult official Würth Elektronik substitution guides for verified alternative part numbers within the WE-CMBNC series or other compatible families. Do not assume interchangeability based solely on similar electrical parameters without manufacturer confirmation.
