Product Detailed Parameters
- Description：CMC 900UH 32A 2LN TH
- Series：WE-CMBNC
- Mfr：Würth Elektronik
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：32A
- DC Resistance (DCR) (Max)：1.1mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.457" L x 0.906" W (37.00mm x 23.00mm)
- Height (Max)：1.417" (36.00mm)
- Package / Case：Vertical, 12 PC Pin
- Inductance @ Frequency：900 µH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

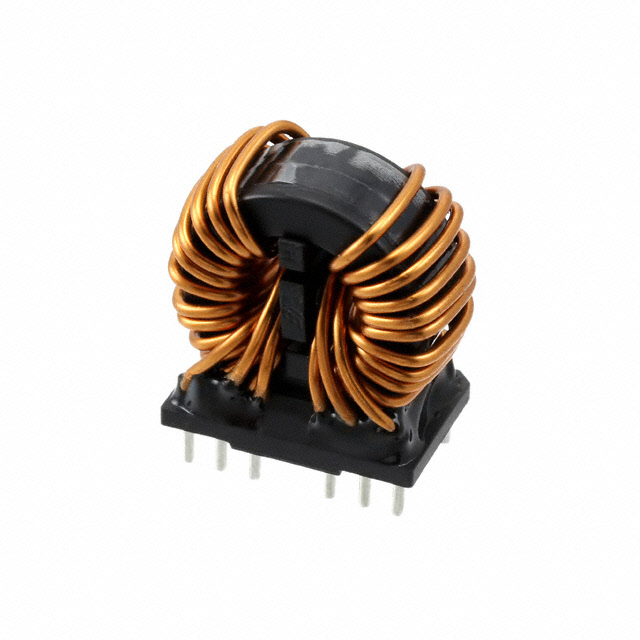

The Würth Elektronik 7448053201 is a WE-CMBNC type XL Nancrystl common mode choke. It features an inductance of 900 µH and supports a maximum DC current rating of 32 A. The component has a maximum DC resistance of 1100 µΩ and operates within a temperature range of -55°C to +125°C.
Feature Summary
- Utilizes Nancrystl technology for high-performance magnetic properties
- Designed for power line filtering applications
- Supports high current handling capabilities
Applications
- Power supply input filtering
- Industrial equipment EMI suppression
- Automotive electronics noise reduction
Procurement Notes
Verify the specific package dimensions and terminal configuration against your PCB footprint requirements before ordering. Confirm that the thermal management strategy accommodates the self-heating characteristics under full load conditions at maximum ambient temperatures.
Selection Notes
Select this component when high current capacity and low insertion loss are required. Ensure the operating frequency range aligns with the target noise spectrum. Verify compatibility with automated placement equipment regarding component height and weight specifications.
Part Context
This part belongs to the WE-CMBNC series, which utilizes Nancrystl material for enhanced performance in common mode chokes. The series is designed for robust operation in demanding environments, offering reliable filtering solutions for power lines in various electronic systems.
Replacement Considerations
Cross-reference with other WE-CMBNC variants for different inductance or current ratings. Verify pinout compatibility if substituting with components from other manufacturers offering similar form factors and electrical characteristics.
