7448060535

Overview

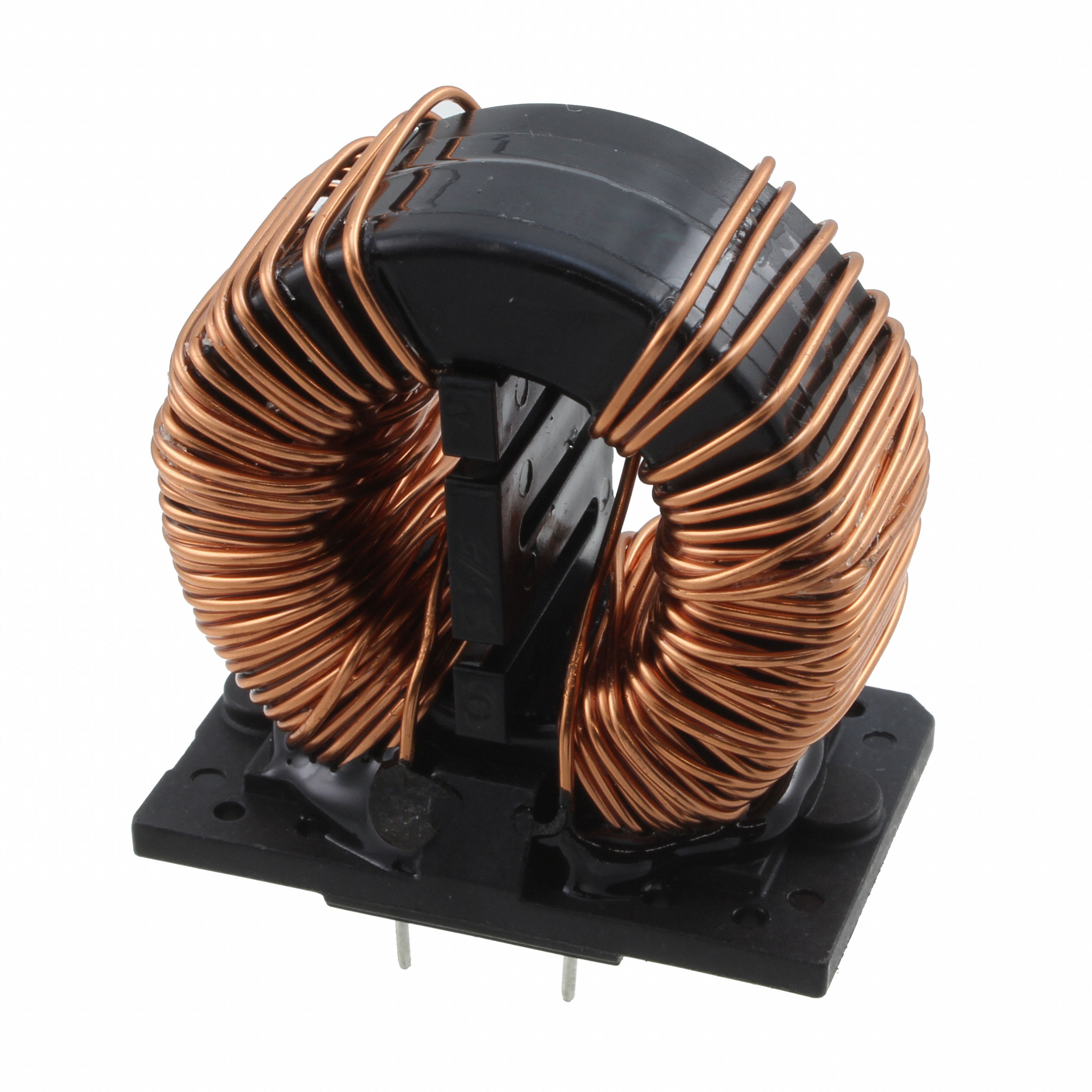

The Würth Elektronik 7448060535 is a common mode choke from the WE-CMBNC series, designed for power line applications. It features an inductance of 35 mH and a DC current rating of 5 A. The maximum DC resistance is 0.09 ohms. The component operates within a temperature range of -55°C to high limits typical for this series. It utilizes NanoCrystalline technology for high performance.

Feature Summary

• Utilizes NanoCrystalline core material for superior magnetic properties
• Designed for common mode noise suppression on power lines
• Supports high DC current ratings with low DC resistance

Applications

• Power line filtering
• Common mode noise suppression
• Electromagnetic interference reduction in electronic equipment

Procurement Notes

Verify the specific part number 7448060535 against official Würth Elektronik documentation to confirm technical specifications. Ensure compatibility with your circuit requirements regarding inductance, current rating, and physical dimensions. Check for any recent product change notices or datasheet revisions that may affect performance characteristics or availability.

Selection Notes

Select this component when high inductance and current handling are required for common mode noise suppression. The NanoCrystalline core offers advantages over traditional ferrite cores in terms of saturation behavior and frequency response. Consider the physical size and mounting style to ensure it fits within your design constraints.

Part Context

This component belongs to the WE-CMBNC series of common mode chokes from Würth Elektronik. The series is known for using NanoCrystalline technology, which provides high permeability and low losses. These chokes are suitable for demanding applications where effective noise filtering is critical.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
