7448061309

$19.74

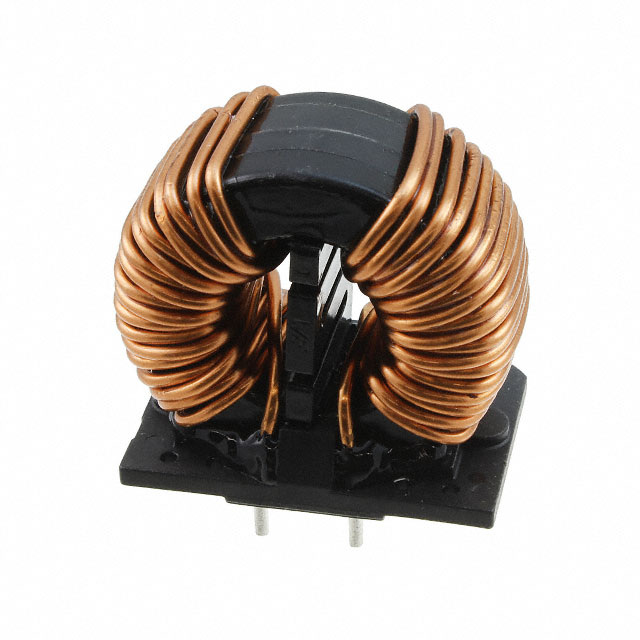

Description：CMC 9MH 13A 2LN TH
Series：WE-CMBNC
Mfr：Würth Elektronik
Package：Bulk

SKU:73ceb30d75c2 Category: Common Mode Chokes Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 9MH 13A 2LN TH
Series：WE-CMBNC
Mfr：Würth Elektronik
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：13A
DC Resistance (DCR) (Max)：15mOhm
Voltage Rating - DC：-
Voltage Rating - AC：300V
Operating Temperature：-55° C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.772" L x 1.063" W (45.00mm x 27.00mm)
Height (Max)：1.811" (46.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：9 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

7448061309

Overview

The Würth Elektronik 7448061309 is a through-hole common mode choke from the WE-CMBNC series. It features an inductance of 9mH and supports a DC current rating of 13A. The maximum DC resistance is 0.015 ohms. The component operates within a minimum temperature range of -55°C.

Feature Summary

Provides common mode noise suppression for two-line circuits
Designed for through-hole mounting applications
Engineered for high DC current handling capabilities

Applications

Power supply input filtering
EMI suppression in electronic equipment
Signal line protection against common mode interference

Procurement Notes

Verify the specific part number 7448061309 against official Wurth Elektronik datasheets to confirm electrical parameters such as 9mH inductance and 13A current rating. Ensure compatibility with through-hole assembly processes and operating temperature requirements before procurement.

Selection Notes

Select this component when designing circuits requiring robust common mode noise attenuation at 13A. Consider the 9mH inductance value for target frequency filtering. Verify that the 0.015 ohm DC resistance meets system power loss constraints and that the -55°C minimum temperature rating aligns with environmental conditions.

Part Context

This component belongs to the WE-CMBNC series of common mode chokes manufactured by Würth Elektronik. These components are designed for electromagnetic interference suppression in power and signal lines, offering reliable performance in industrial and consumer electronics applications.

Replacement Considerations

Consult official Wurth Elektronik documentation for verified substitute part numbers within the WE-CMBNC series or equivalent product lines. Cross-reference inductance, current rating, and physical dimensions to ensure functional compatibility.
