7448061507

Overview

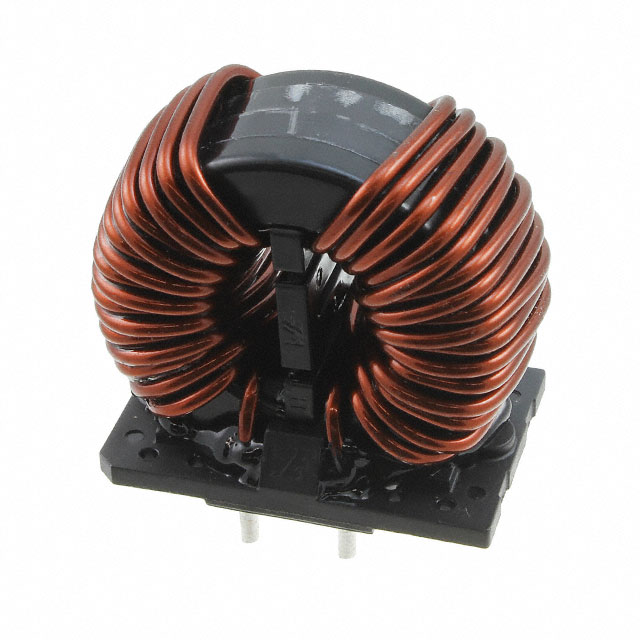

The Würth Elektronik 7448061507 is a common mode power line choke from the WE-CMBNC series. It features an inductance of 7 mH and supports a DC current rating of 15 A. The maximum DC resistance is 9500 µohms. Operating temperatures range from -55°C to +125°C. The component utilizes nanocrystalline technology for high performance.

Feature Summary

• Utilizes nanocrystalline core material for superior magnetic properties
• Designed for high current handling up to 15 A
• Provides effective common mode noise suppression

Applications

• Power line filtering in industrial equipment
• Noise suppression in automotive electronics
• EMI reduction in consumer power supplies

Procurement Notes

Verify the specific datasheet version for mechanical dimensions and soldering profiles. Confirm compliance with RoHS and SVHC declarations as stated in the official documentation. Ensure storage conditions align with manufacturer guidelines to maintain component integrity prior to assembly.

Selection Notes

Select this component when high inductance and high current capacity are required for common mode noise reduction. The nanocrystalline construction offers advantages over traditional ferrite cores in specific frequency ranges. Evaluate thermal management requirements given the 15 A rating and operating temperature limits.

Part Context

This part belongs to the WE-CMBNC series, which specializes in nanocrystalline common mode chokes. These components are engineered for applications demanding high saturation current and stable inductance under load. The series addresses EMI challenges in compact power systems.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
