Product Detailed Parameters
- Description：CMC 5MH 21A 2LN TH
- Series：WE-CMBNC
- Mfr：Würth Elektronik
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：21A
- DC Resistance (DCR) (Max)：6.5mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：300V
- Operating Temperature：-55° C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.831" L x 1.083" W (46.50mm x 27.50mm)
- Height (Max)：1.811" (46.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：5 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

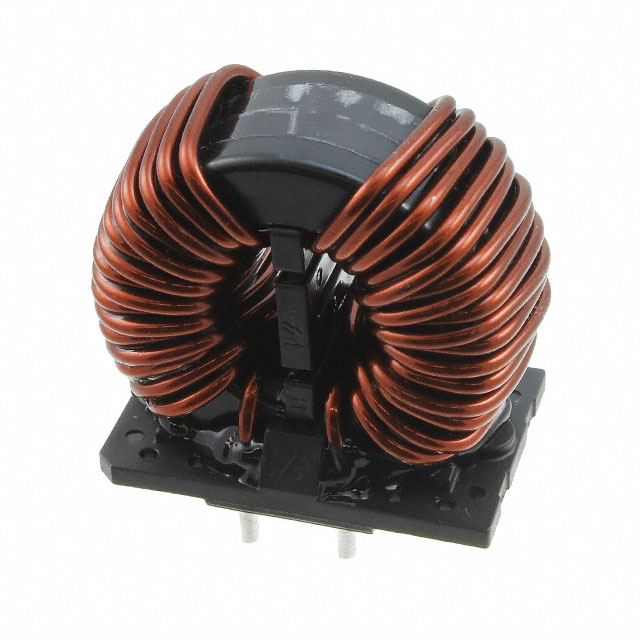

The Würth Elektronik 7448062105 is a common mode power line choke from the WE-CMBNC series, utilizing nanocrystalline core technology. It features an inductance of 5 mH and supports a maximum DC current of 21 A with a low DC resistance of 10 milliohms. Designed for high-power applications, it operates within a temperature range of -55°C to +125°C and is rated for 300V AC. The component is available in loose bag packaging.
Feature Summary
- Utilizes nanocrystalline material for superior magnetic performance
- Designed for high-current power line filtering applications
- Robust construction suitable for demanding thermal environments
Applications
- Power line noise suppression in industrial equipment
- EMI filtering for high-power electronic systems
- Common mode interference reduction in automotive power circuits
Procurement Notes
Verify the specific package configuration and lead times directly with authorized distributors or the manufacturer. Confirm that the 21 A current rating aligns with your system's thermal management capabilities. Ensure compatibility with the 300V AC voltage rating for your intended circuit design before finalizing procurement orders.
Selection Notes
Select this component when high current handling and effective common mode noise attenuation are required. The nanocrystalline core offers advantages over traditional ferrite materials in terms of saturation characteristics. Consider the physical dimensions and mounting requirements to ensure adequate clearance on the PCB layout for thermal dissipation.
Part Context
This part belongs to the WE-CMBNC series, which focuses on nanocrystalline common mode chokes. These components are engineered for robust performance in challenging electromagnetic environments. The series provides solutions for filtering conducted emissions in power lines where standard ferrite cores may saturate under high load conditions.
Replacement Considerations
Consult official Wurth Elektronik documentation for verified cross-reference part numbers. Ensure any substitute maintains equivalent inductance, current rating, and temperature specifications.
