7448062603

Overview

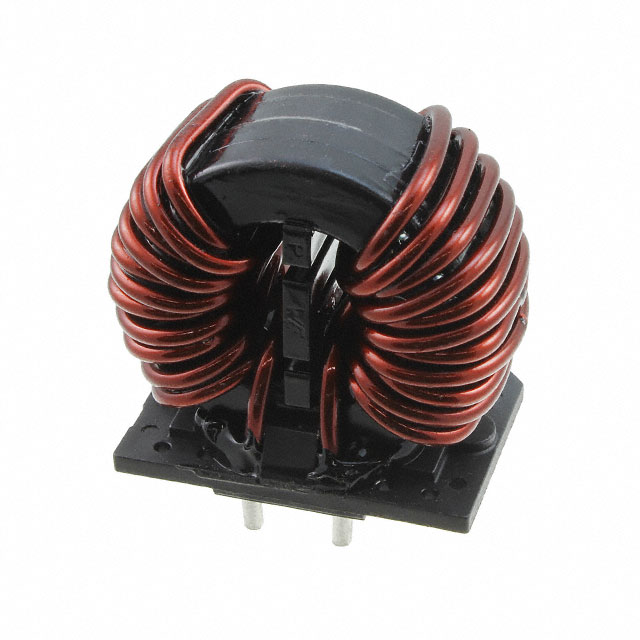

The Würth Elektronik 7448062603 is a WE-CMBNC Type XXL Nancrystl common mode choke designed for high-current power line filtering. It features an inductance of 3 mH and supports a maximum DC current rating of 26 A. The component operates within a frequency range centered around 10 kHz, making it suitable for robust electromagnetic interference suppression in demanding industrial applications.

Feature Summary

• Utilizes Nancrystl technology for enhanced magnetic performance
• Designed for high current handling up to 26 A
• Optimized for common mode noise suppression on power lines

Applications

• Industrial power supply input filtering
• High-current motor drive circuits
• Power line EMI suppression systems

Procurement Notes

Verify the specific package dimensions and terminal configuration against your PCB layout requirements before ordering. Confirm that the 26 A current rating aligns with your system's peak load conditions. Ensure compatibility with your operating temperature range, as thermal management may be required for sustained high-current operation.

Selection Notes

Select this component when high inductance values are required alongside substantial current capacity. The WE-CMBNC series offers a balance of size and performance for power line applications. Consider the physical footprint constraints and mounting style compatibility with your assembly process during the design phase.

Part Context

This part belongs to the WE-CMBNC family of common mode chokes from Würth Elektronik. The series utilizes specialized nanocrystalline materials to achieve high saturation currents while maintaining effective noise attenuation characteristics across specified frequency bands for power electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
