Product Detailed Parameters

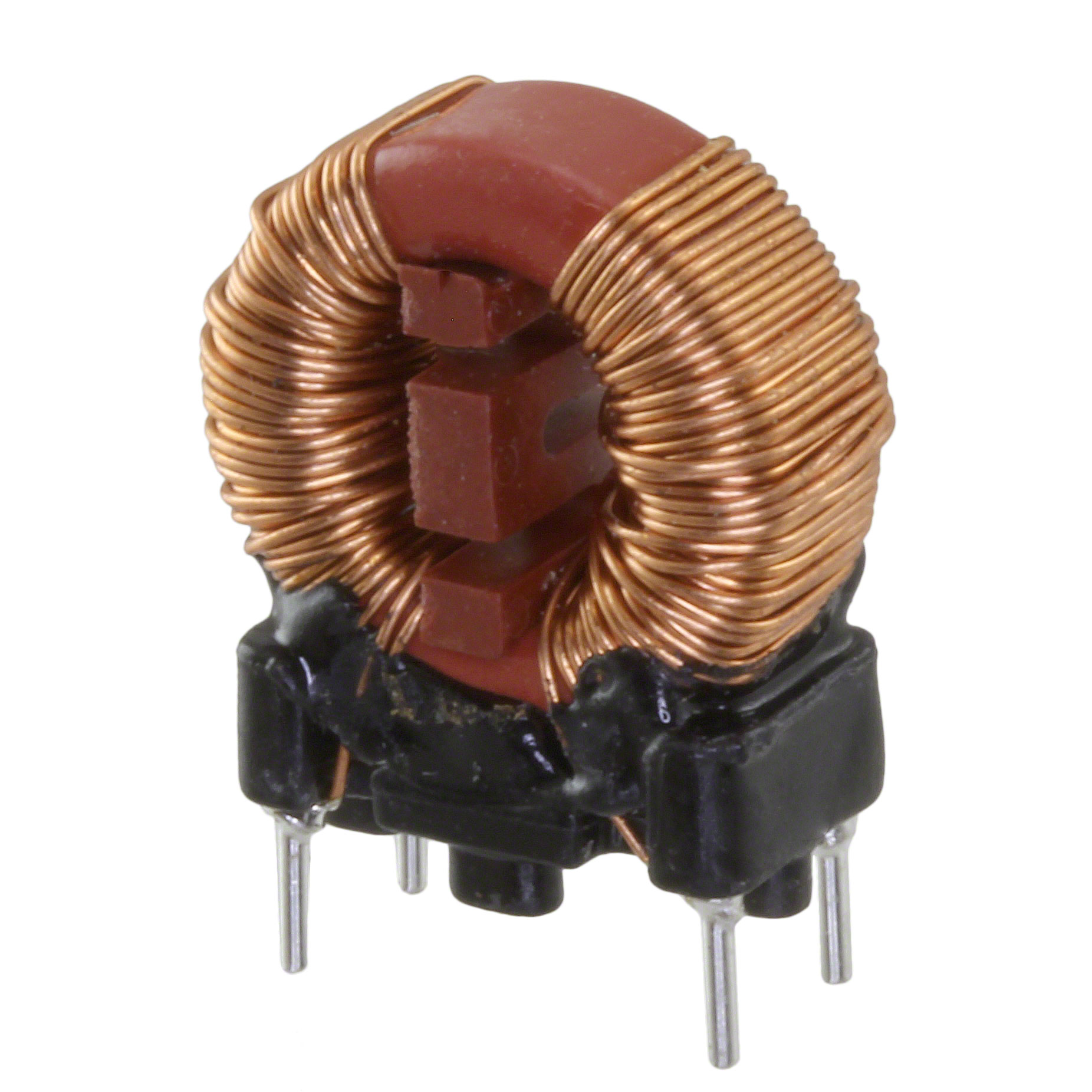

- Description：CMC 10MH 700MA 2LN TH
- Series：WE-CMB
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：700mA
- DC Resistance (DCR) (Max)：350mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.591" L x 0.295" W (15.00mm x 7.50mm)
- Height (Max)：0.709" (18.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：10 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
