744825605

Overview

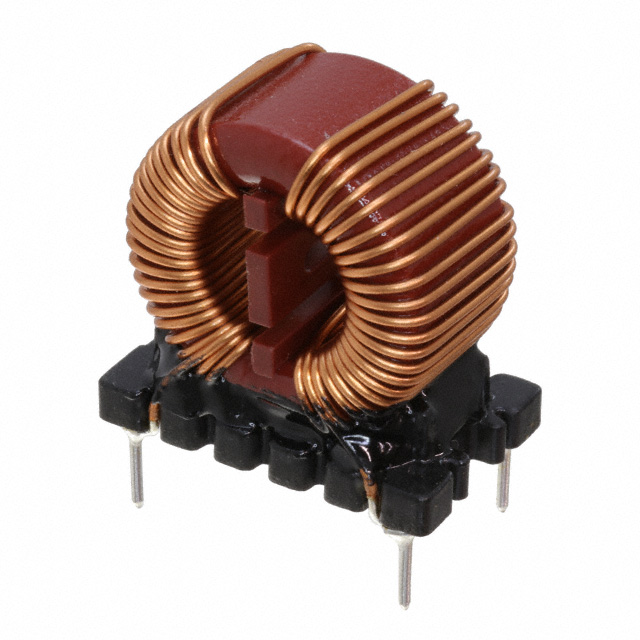

The Würth Elektronik 744825605 is a WE-CMB series common mode power choke designed for filtering applications. It features an inductance of 5 mH with a tolerance of ±30%. The component supports a maximum DC current rating of 6 A and has a maximum DC resistance of 45 mΩ. It operates within a temperature range of -40 °C to +125 °C.

Feature Summary

• Provides common mode noise suppression for power lines
• Designed as a power choke for high-current applications
• Utilizes WE-CMB series construction for reliable filtering

Applications

• Power line filtering
• Common mode noise suppression
• Electromagnetic interference (EMI) reduction in power supplies

Procurement Notes

Verify the manufacturer part number 744825605 against official Wurth Elektronik documentation to ensure authenticity. Confirm that the component matches the specified electrical parameters, including 5 mH inductance and 6 A current rating. Check for compliance with relevant environmental standards such as REACH before procurement.

Selection Notes

Select this component when a common mode choke with 5 mH inductance and 6 A current handling capability is required. Ensure the operating environment stays within the -40 °C to +125 °C range. Verify that the 45 mΩ DC resistance meets the circuit's efficiency requirements.

Part Context

This component belongs to the WE-CMB series of common mode chokes from Würth Elektronik. These components are engineered for power line applications where effective noise filtration is critical. The series offers standardized specifications for integration into various electronic systems requiring EMI mitigation.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
