Product Detailed Parameters
- Description：CMC 10MH 3A 2LN TH
- Series：WE-CMBH
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：110mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：ENEC, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.280" L x 1.102" W (32.50mm x 28.00mm)
- Height (Max)：0.866" (22.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：10 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

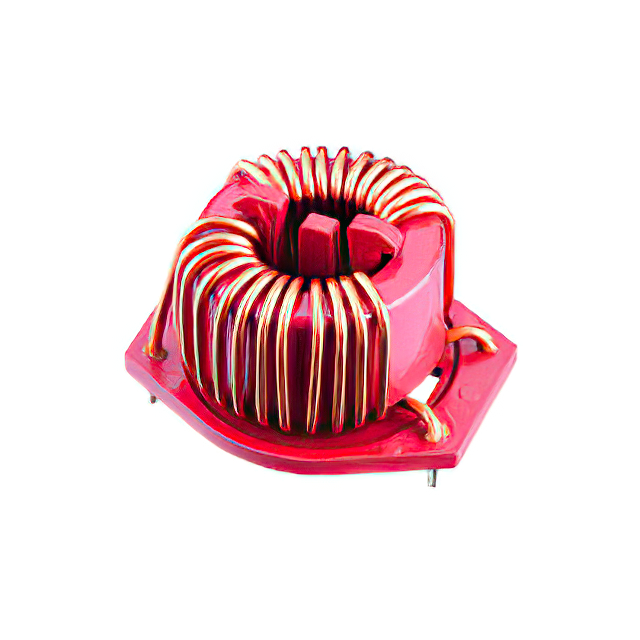

The Würth Elektronik 744834310 is a WE-CMBH series common mode power line choke designed for horizontal through-hole mounting. It features an inductance of 10 mH and supports a maximum DC current of 3 A. The component has a maximum DC resistance of 0.11 Ω. Its physical dimensions are 32.5 mm in length, 28 mm in width, and 22 mm in height. The unit operates within a temperature range of -40°C to +125°C.
Feature Summary
- Horizontal through-hole construction for robust mechanical stability
- Nano-crystal core technology for high magnetic performance
- Designed for effective common mode noise suppression on power lines
Applications
- Industrial power supply input filtering
- Electromagnetic interference suppression in AC/DC converters
- Noise reduction in sensitive electronic equipment power stages
Procurement Notes
Verify the specific part number 744834310 against official Wurth Elektronik documentation to confirm the 10 mH inductance and 3 A current rating. Ensure the horizontal mounting orientation matches the design requirements. Cross-reference technical specifications with authorized distributors to guarantee authenticity and compliance with safety standards such as VDE or RoHS where applicable.
Selection Notes
Select this component when a horizontal form factor is required for through-hole assembly. The 10 mH inductance and 3 A current handling capability suit moderate power applications requiring significant common mode attenuation. Consider the 0.11 Ω DC resistance for efficiency calculations. Verify that the operating temperature range meets the environmental conditions of the target application.
Part Context
This component belongs to the WE-CMBH series from Würth Elektronik, which specializes in common mode chokes utilizing nano-crystal cores. These components are engineered for high-performance electromagnetic compatibility in power electronics. The series offers various inductance values and current ratings to address diverse filtering needs in industrial and consumer applications.
Replacement Considerations
Consult official Wurth Elektronik substitution guides for verified alternatives. Ensure any replacement maintains the same inductance, current rating, and physical footprint. Generic equivalents may not replicate the nano-crystal core performance characteristics.
