Product Detailed Parameters
- Description：CMC 5.6MH 600MA 2LN TH
- Series：WE-TFCH
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：600mA
- DC Resistance (DCR) (Max)：830mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：400V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.669" L x 0.600" W (17.00mm x 15.23mm)
- Height (Max)：0.481" (12.23mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：5.6 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

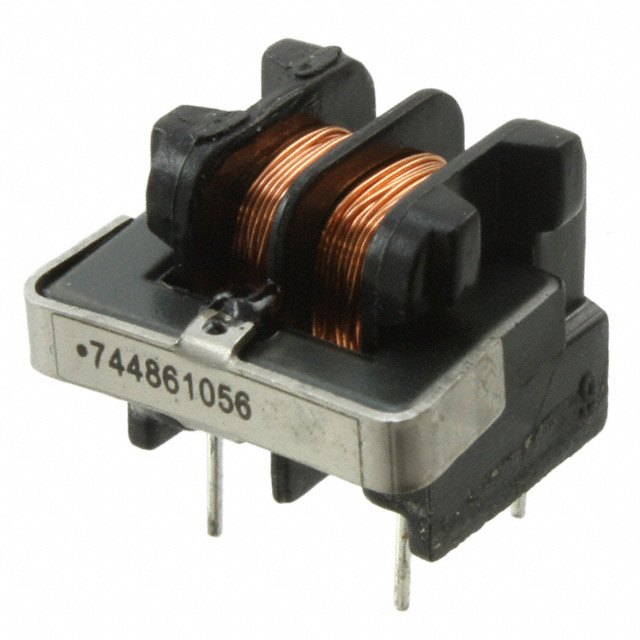

The Würth Elektronik 744861056 is a two-line common mode choke from the WE-TFCH series, designed for power line filtering. It features an inductance of 5.6 mH measured at 10 kHz and supports a maximum rated current of 600 mA. The component has a maximum DC resistance (DCR) of 830 milliohms and an AC voltage rating of 400 V. It utilizes a horizontal through-hole package with four pins, measuring 17.00 mm in length, 15.23 mm in width, and up to 12.23 mm in height. The device operates within a temperature range of -40°C to +125°C.
Feature Summary
- Provides common mode noise suppression for two-line power circuits
- Constructed with ferrite core material for effective high-frequency attenuation
- Designed for through-hole mounting on printed circuit boards
Applications
- Power supply input filtering
- EMI suppression in electronic equipment
- Signal integrity enhancement in power lines
Procurement Notes
Verify the specific part number against official manufacturer documentation to ensure compatibility with design requirements. Confirm that the through-hole footprint dimensions and pin spacing match the target PCB layout. Check for RoHS compliance status if environmental regulations apply to the final assembly. Ensure the operating temperature range meets the system's thermal conditions.
Selection Notes
Select this component when a two-line common mode choke with 5.6 mH inductance is required for power line applications. Consider the 600 mA current rating and 830 milliohm DCR to ensure it fits the circuit's electrical constraints. The through-hole format is suitable for manual assembly or specific automated processes requiring this package type. Evaluate the physical size constraints against the available board space.
Part Context
This component belongs to the WE-TFCH series of common mode chokes manufactured by Würth Elektronik. The series is characterized by its use in power line filtering applications, offering reliable performance across a wide temperature range. The specific model 744861056 represents a standard configuration within this product line, focusing on general-purpose EMI suppression tasks.
Replacement Considerations
Consult official manufacturer substitution guides for verified alternative part numbers. Ensure any replacement maintains equivalent inductance, current rating, and physical dimensions. Verify that the substitute component meets the same regulatory standards and performance specifications as the original part.
