Product Detailed Parameters
- Description：CMC 25MH 250MA 2LN TH
- Series：WE-TFCH
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：250mA
- DC Resistance (DCR) (Max)：3.6Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：400V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.669" L x 0.600" W (17.00mm x 15.23mm)
- Height (Max)：0.481" (12.23mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：25 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

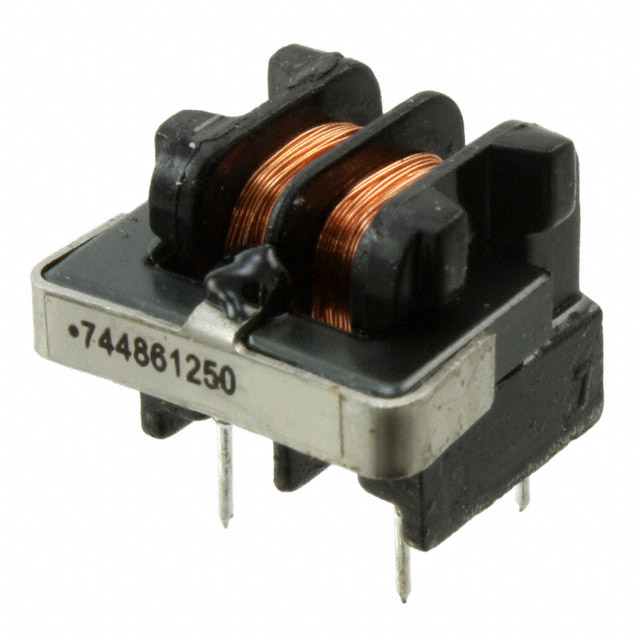

The Würth Elektronik 744861250 is a common mode filter choke from the WE-TFCH Type UT series, designed for power line applications. It features an inductance of 25 mH with a maximum DC resistance of 3.6 Ohms and a rated current of 250 mA. The component utilizes through-hole mounting with an 8 mm lead spacing. It operates within a temperature range of -40°C to +125°C and is tested at 10 kHz.
Feature Summary
- Provides common mode noise suppression for power lines
- Utilizes through-hole technology for PCB integration
- Designed for high-temperature operational environments
Applications
- Power supply input filtering
- EMI suppression in electronic equipment
- Signal integrity protection in data lines
Procurement Notes
Verify the specific datasheet revision to confirm mechanical dimensions and electrical tolerances match design requirements. Ensure the through-hole footprint aligns with the PCB layout. Confirm compliance with relevant safety standards if used in certified end-products. Cross-reference the manufacturer part number to avoid confusion with similar series components.
Selection Notes
Select this component when a 25 mH inductance is required for common mode noise reduction. The 250 mA current rating suits low-power signal or control line applications. Consider the 3.6 Ohm DC resistance impact on voltage drop. The through-hole package is suitable for manual assembly or selective wave soldering processes.
