Product Detailed Parameters
- Description：CMC 2.7MH 1.2A 2LN TH
- Series：WE-FC
- Mfr：Würth Elektronik
- Package：Tube
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.2A
- DC Resistance (DCR) (Max)：225mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.835" L x 0.835" W (21.20mm x 21.20mm)
- Height (Max)：0.701" (17.80mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：2.7 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

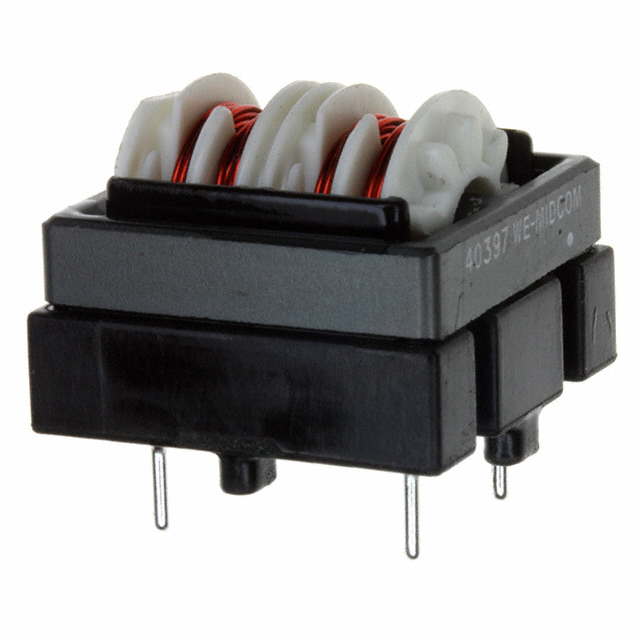

The Würth Elektronik 7448640397 is a current-compensated common mode choke from the WE-FC series, designed for power line filtering and EMI suppression. It features an inductance of 3.9 mH at 10 kHz, a maximum DC resistance of 0.26 ohms, and a rated DC current of 1.3 A. The component operates within a temperature range of -40°C to +125°C and utilizes through-hole mounting.
Feature Summary
- Provides effective common mode noise reduction for AC power lines
- Current-compensated design suitable for power line applications
- Robust construction supporting wide operating temperature ranges
Applications
- AC power line filtering
- EMI suppression in electronic equipment
- Power supply input stages
Procurement Notes
Verify the specific datasheet version for the 7448640397 part number to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with existing PCB footprints and thermal management requirements before finalizing procurement decisions.
Selection Notes
Select this component when high current handling up to 1.3 A is required alongside significant common mode attenuation. The low DC resistance minimizes power loss, while the wide temperature range ensures reliability in demanding environments compared to standard chokes.
Part Context
This part belongs to the WE-FC series of common mode chokes by Würth Elektronik. These components are engineered for robust performance in industrial and consumer electronics, offering a balance of high inductance and low DC resistance for efficient power line noise mitigation.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and inductance values carefully if considering alternative manufacturers.
FAQ
What is the inductance value of the 7448640397?
The inductance is 3.9 mH measured at 10 kHz.
What is the maximum DC current rating?
The maximum DC current rating is 1.3 A.
