Product Detailed Parameters
- Description：CMC 5.6MH 800MA 2LN TH
- Series：WE-FC
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：800mA
- DC Resistance (DCR) (Max)：415mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.835" L x 0.654" W (21.20mm x 16.60mm)
- Height (Max)：0.886" (22.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：5.6 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

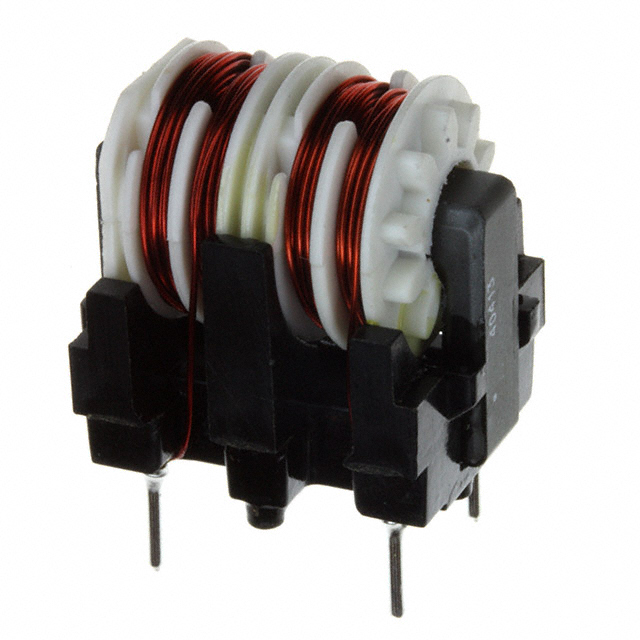

The Würth Elektronik 7448640413 is a through-hole common mode choke from the WE-FC series, designed for power line filtering. It features an inductance of 5.6 mH at 10 kHz and supports a maximum DC current of 800 mA to 1.05 A depending on specific rating conditions. The component exhibits a typical DC resistance of 415 mOhms and operates within a temperature range of -40°C to +125°C. It complies with AEC-Q200 automotive standards, ensuring reliability for demanding electronic applications.
Feature Summary
- Complies with AEC-Q200 automotive qualification standards for enhanced reliability
- Provides effective common mode noise suppression for power lines
- Designed for robust through-hole PCB mounting configurations
Applications
- Automotive power supply circuit filtering
- Industrial equipment EMI suppression
- Power line noise reduction in electronic assemblies
Procurement Notes
Verify the exact electrical parameters against the official datasheet before procurement, as listings may vary between 5.6 mH/800 mA and 7.2 mH/1.05 A specifications. Confirm the package type matches your board layout requirements. Ensure the supplier provides genuine Würth Elektronik components to guarantee AEC-Q200 compliance and thermal performance.
Selection Notes
Select this component when automotive-grade reliability is required for common mode interference mitigation. Compare inductance values and current ratings against your specific circuit load to ensure adequate saturation margins. Consider the through-hole footprint constraints during mechanical design integration to ensure proper clearance and mounting stability.
Part Context
This part belongs to the WE-FC series of common mode chokes manufactured by Würth Elektronik. The series focuses on high-performance filtering solutions suitable for both industrial and automotive environments. Components in this family are characterized by stable magnetic properties and adherence to strict automotive quality standards for long-term operational durability.
Replacement Considerations
Cross-reference with other WE-FC series parts for similar inductance and current ratings. Verify that any substitute maintains AEC-Q200 certification if automotive application is critical. Check physical dimensions and pin configuration compatibility before replacing.
