Product Detailed Parameters
- Description：CMC 450UH 10A 2LN TH
- Series：WE-LPCC
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：9.6mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 115°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.083" L x 0.984" W (27.51mm x 24.99mm)
- Height (Max)：0.472" (11.99mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：450 µH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

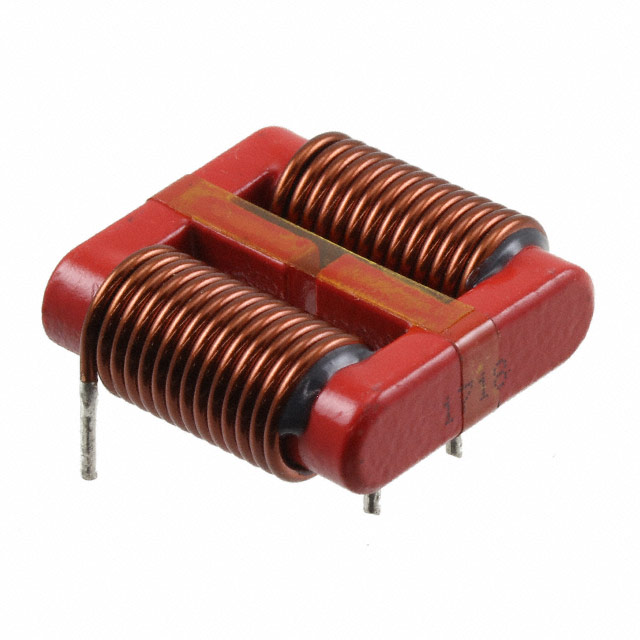

The Würth Elektronik WE-LPCC CM Pwr Choke (7448680100) is a through-hole common mode choke designed for power line filtering. It features an inductance of 450 µH and supports a maximum DC current of 9.5 A. The component exhibits a maximum DC resistance of 9.6 mΩ, ensuring low insertion loss. Rated for operation between -40°C and +125°C, it provides effective noise suppression in industrial and automotive applications requiring robust electromagnetic interference mitigation.
Feature Summary
- Through-hole mounting configuration for secure PCB attachment
- High saturation current capability for stable performance under load
- Low DC resistance to minimize power loss and heat generation
- Wide operating temperature range suitable for harsh environments
Applications
- Industrial power supply input filtering
- Automotive electronics EMI suppression
- General-purpose AC/DC converter noise reduction
Procurement Notes
Verify the complete part number including any suffixes against the manufacturer datasheet to ensure correct specifications. Confirm package dimensions and pin compatibility with your PCB layout before ordering. Check for RoHS compliance status if required by your assembly standards. Ensure storage conditions align with manufacturer guidelines to maintain component integrity prior to use.
Selection Notes
Select this component when high current handling and low resistance are critical for power line filtering. Compare inductance values against target noise frequencies to ensure effective attenuation. Evaluate thermal management requirements based on the 9.5 A rating and ambient operating conditions. Consider mechanical stability needs for through-hole versus surface-mount alternatives.
Part Context
This component belongs to the WE-LPCC series from Würth Elektronik, specialized for common mode chokes in power applications. The series offers various inductance and current ratings to suit different filtering requirements. It is engineered for reliability in demanding electronic systems where consistent performance across wide temperature ranges is essential.
Replacement Considerations
Consult official Wurth Elektronik documentation for verified cross-references or alternative part numbers within the same series. Ensure any substitute matches the 450 µH inductance, 9.5 A current rating, and 9.6 mΩ resistance specifications. Verify physical footprint compatibility for direct replacement without PCB redesign.
