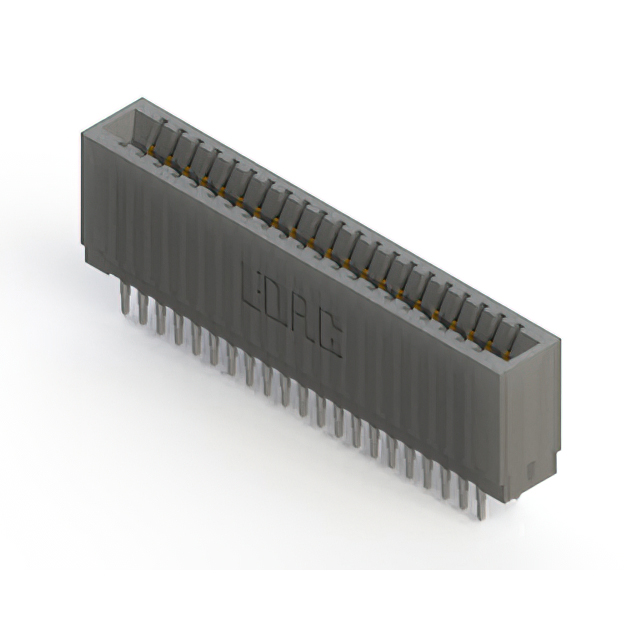

745-042-560-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 42POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 745-042-560-201
- Description：CONN EDGE DUAL FMALE 42POS 0.100
- Series：745
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：21
- Number of Positions：42
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Press-Fit
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：Cantilever, Make Before Break
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 745-042-560-201
Edgeboard Connectors Overview
The EDAC Inc. 745-042-560-201 is a dual-edge card edge connector featuring 42 positions with a 0.100-inch (2.54mm) contact spacing. It utilizes female contacts and press-fit termination for panel installation. The insulator is black, constructed from Diallyl Phthalate (DAP). This component supports double-row configurations and is designed for high-reliability interconnection applications requiring robust mechanical retention without soldering.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for board insertion
- Press-fit termination method eliminates soldering requirements
- Black Diallyl Phthalate (DAP) insulator material
- Panel mount installation style
Edgeboard Connectors Applications
- High-density backplane interconnections
- Industrial control system modules
- Telecommunications equipment interfaces
- Automotive electronic sub-systems
Edgeboard Connectors Procurement Notes
Verify the specific series designation and termination type against official EDAC documentation to ensure compatibility with existing panel mounting structures. Confirm that the press-fit variant matches the target PCB hole specifications. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current production status and avoid obsolete stock substitutions.
Edgeboard Connectors Selection Notes
Select this model when a dual-sided card edge interface is required with non-soldered termination. Ensure the application environment accommodates the thermal characteristics of the DAP insulator. Verify that the 42-position count aligns with signal routing needs. Consider the mechanical constraints of the press-fit process during PCB design phase to guarantee proper retention force and alignment.
Edgeboard Connectors Part Context
This component belongs to the EDAC 745 Series Ultra-Mate line of card edge connectors. It represents a specialized variant within the broader EDAC portfolio, distinguished by its dual-edge geometry and press-fit termination technology. The series is engineered for applications demanding high cycle reliability and secure mechanical locking in dense electronic assemblies.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical electrical parameters, mechanical dimensions, and termination method verification through official EDAC engineering channels.
