745-075-520-106

$13.20

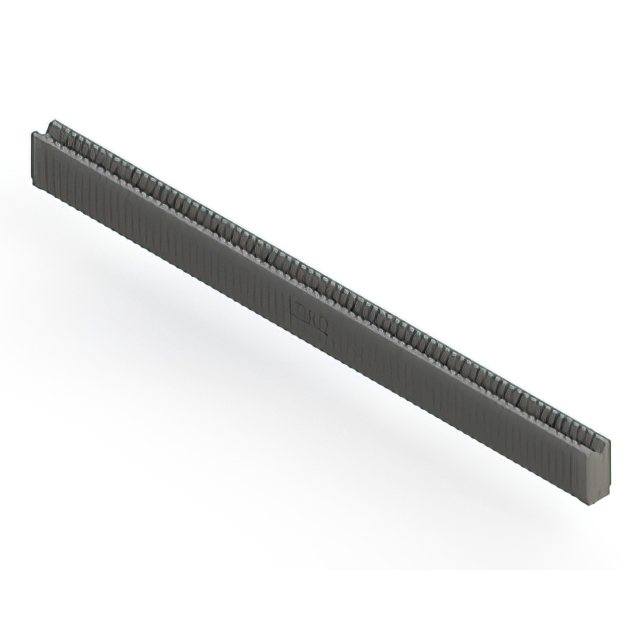

Description：CONN EDGE SINGLE FML 75POS 0.100
Series：745
Mfr：EDAC Inc.
Package：Bulk

SKU:65cfe3b2bd80 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

745-075-520-106 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 75POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 745-075-520-106

Description：CONN EDGE SINGLE FML 75POS 0.100
Series：745
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：75
Number of Positions：75
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Press-Fit
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 745-075-520-106

745-075-520-106

Edgeboard Connectors Overview

The EDAC Inc. 745-075-520-106 is a standard press-fit card edge connector from the 745 series. It features 75 positions with a 2.54 mm (0.100 inch) contact spacing in a single row configuration. The connector utilizes gold-plated copper alloy contacts and is housed in a thermoplastic polyester insulator. Designed for vertical through-hole mounting, it supports PCB thicknesses of 1.57 mm. The component operates within a temperature range of -40°C to +105°C and carries RoHS compliance status.

Edgeboard Connectors Feature Summary

Press-fit termination method ensures secure mechanical attachment without soldering
Gold-plated contacts provide reliable electrical performance and corrosion resistance
Thermoplastic polyester insulation offers durability and thermal stability

Edgeboard Connectors Applications

Industrial control systems requiring robust board-to-board connections
Telecommunications equipment utilizing high-density signal interfaces
Automotive electronics demanding reliable press-fit mounting solutions

Edgeboard Connectors Procurement Notes

Verify that the target printed circuit board accommodates the specific press-fit installation requirements. Confirm that the design allows for the necessary clearance around the connector tails. Ensure compatibility with the specified PCB thickness of 1.57 mm to guarantee proper engagement. Check for any specific environmental certifications required by the end application standards.

Edgeboard Connectors Selection Notes

Choose this component when a non-soldered, high-reliability connection is required for single-row card edge applications. The press-fit technology simplifies assembly processes while maintaining consistent contact pressure. Consider the operating temperature range and material composition to ensure suitability for the intended environmental conditions and mechanical stresses.

Edgeboard Connectors Part Context

This part belongs to the EDAC 745 series, which specializes in press-fit card edge connectors. The series is designed for applications where traditional soldering may be impractical or undesirable. The 745 series provides various position counts and configurations to meet diverse connectivity needs in industrial and commercial sectors.
