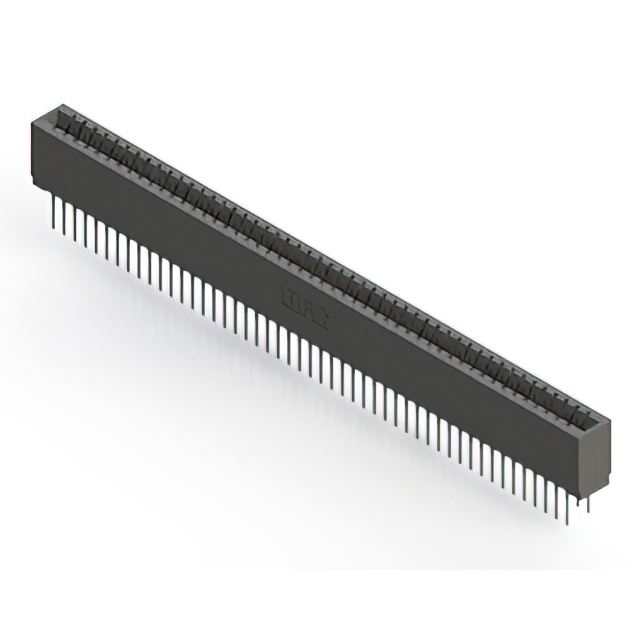

746-098-527-201

$9.92

Description：CONN EDGE DUAL FMALE 98POS 0.125
Series：746
Mfr：EDAC Inc.
Package：Box

SKU:519079e9a70d Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

746-098-527-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 98POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 746-098-527-201

Description：CONN EDGE DUAL FMALE 98POS 0.125
Series：746
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：49
Number of Positions：98
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.125" (3.18mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Press-Fit
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 746-098-527-201

746-098-527-201

Edgeboard Connectors Overview

The EDAC Inc. part number 746-098-527-201 is a standard card edge connector from the 746 series. It features 98 positions with a 3.175 mm pitch. The connector utilizes press-fit termination for vertical board installation. Contact surfaces are gold-plated to ensure reliable signal transmission. The design accommodates specific board thickness requirements for secure mechanical engagement.

Edgeboard Connectors Feature Summary

Vertical press-fit mounting mechanism for direct PCB integration
Gold-plated contacts for enhanced conductivity and durability
Standard card edge interface compatible with specified board thicknesses

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interconnects
Computing hardware module connections

Edgeboard Connectors Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before procurement. Confirm that the target printed circuit board thickness aligns with the connector's mechanical tolerances. Ensure the press-fit termination method matches the assembly process capabilities. Cross-reference the RoHS compliance status if environmental regulations apply to the final product deployment.

Edgeboard Connectors Selection Notes

Select this component when a high-density vertical connection is required without soldering the connector itself. The 98-position count suits applications needing substantial I/O or data lines in a single row. Verify that the 3.175 mm pitch fits the available board real estate. Consider the press-fit requirement for manufacturing infrastructure compatibility.

Edgeboard Connectors Part Context

This component belongs to the EDAC 746 series of standard card edge connectors. The series offers various position counts and termination styles. The 746-098 variant specifically addresses needs for medium-to-high density vertical interconnections using press-fit technology rather than traditional surface mount or through-hole soldering methods.
