Overview

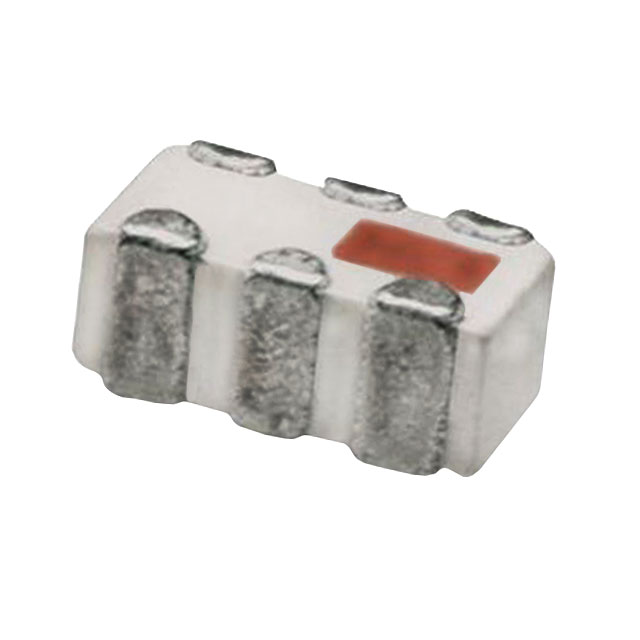

The Würth Elektronik 748125024 is a low-pass filter from the WE-LPF series, designed for RF applications. It operates within a passband frequency range of 2.4 GHz to 2.5 GHz and features a center frequency of 2.45 GHz. The component utilizes an SMD/SMT termination style in a compact form factor. It exhibits an insertion loss of 0.5 dB and functions reliably across a temperature range of -40°C to +85°C.

Feature Summary

• Provides signal filtering for wireless communication systems
• Compact surface-mount design suitable for space-constrained PCBs
• Optimized performance for specific RF frequency bands

Applications

• DECT systems
• PACS networks
• PHS devices
• GSM infrastructure

Procurement Notes

Verify the exact package dimensions and pin configuration against the official datasheet before integration. Confirm that the operating temperature range meets your environmental requirements. Ensure compatibility with your manufacturing process for surface-mount assembly. Cross-reference the part number with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when designing circuits requiring low-pass filtering in the 2.4-2.5 GHz range. Consider its small footprint if board space is limited. Evaluate the insertion loss specification to ensure it meets your signal integrity needs. Check thermal ratings to confirm suitability for your operational environment.

Part Context

This part belongs to the WE-LPF series by Würth Elektronik, specializing in RF filters. These components are engineered for high-performance wireless applications. The series offers various configurations tailored to different frequency requirements and packaging needs.

FAQ

What is the passband frequency range?

The passband frequency range is 2.4 GHz to 2.5 GHz.

What is the maximum operating temperature?

The maximum operating temperature is +85°C.
