748323024

Overview

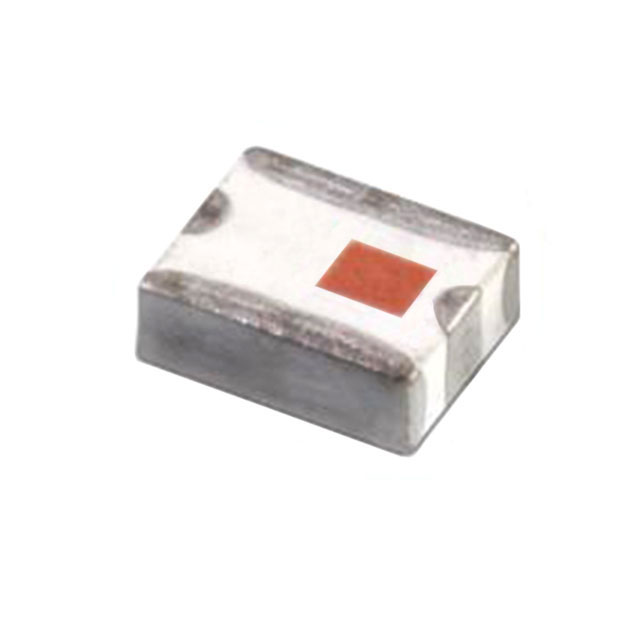

The Würth Elektronik 748323024 is a WE-BPF series multilayer chip band-pass RF filter designed for surface mount applications. It operates within the 2400 to 2500 MHz frequency range with a center frequency of 2.45 GHz and a bandwidth of 100 MHz. The component features an insertion loss of 2.2 dB and is housed in a compact 0805 (2012 Metric) package measuring 2.00 mm x 1.25 mm x 1.00 mm.

Feature Summary

• Multilayer ceramic construction for stable RF performance
• Surface mount design compatible with automated assembly
• Band-pass filtering characteristics for signal conditioning

Applications

• Wireless LAN modules
• Bluetooth devices
• ISM band equipment

Procurement Notes

Verify the specific datasheet version and impedance matching requirements against the target circuit design. Confirm that the 0805 footprint dimensions align with the PCB layout constraints. Ensure compliance with RoHS directives if required by the final product specifications.

Selection Notes

Select this component when a 2.45 GHz center frequency and 100 MHz bandwidth are required for ISM band applications. The 0805 package size offers a balance between performance and board space efficiency compared to larger packages.

Part Context

This part belongs to the WE-BPF series, which provides various band-pass filters for RF signal conditioning. The series utilizes multilayer technology to achieve high Q-factors and precise frequency responses in small form factors suitable for modern portable electronics.

FAQ

What is the operating frequency range?

The operating frequency range is 2400 to 2500 MHz.

What is the package type?

The package type is 0805 (2012 Metric).
