Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：WE-MCA
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a45404a33e14 Category: RF Antennas Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：WE-MCA
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：Bluetooth, Cellular, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：2
Return Loss：-
Gain：2dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.047" (1.20mm)
Applications：Bluetooth, GSM, WLAN
Power - Max：3 W

Download product information

7488940245

Overview

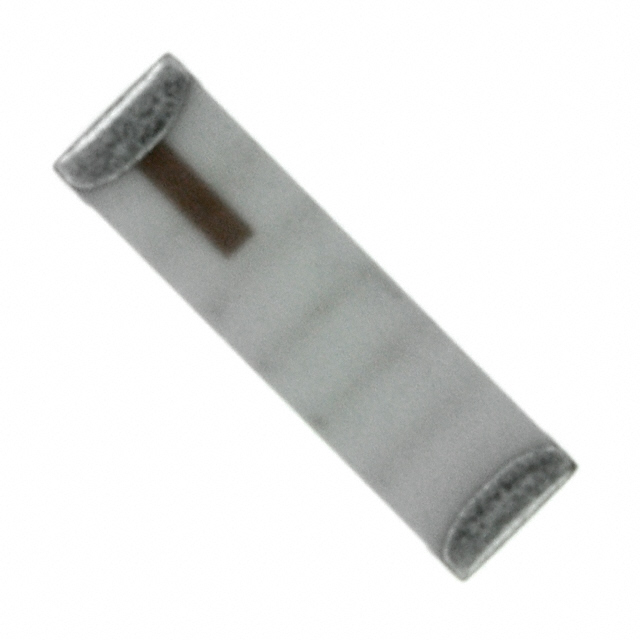

The Würth Elektronik 7488940245 is a multilayer chip antenna from the WE-MCA series, designed for surface-mount applications. It operates within the 2.4GHz to 2.5GHz frequency range, supporting Bluetooth, GSM, and WLAN protocols. The component features a gain of 2dBi and a maximum power handling capacity of 3W. Physical dimensions are 7mm x 2mm x 1.2mm with a maximum height of 1.20mm. It utilizes solder termination and has a Voltage Standing Wave Ratio (VSWR) of 2. The part is RoHS compliant, REACH unaffected, and classified under MSL level 1.

Feature Summary

Multilayer chip construction optimized for compact surface-mount integration
Supports multiple wireless standards including Bluetooth, GSM, and WLAN
High power handling capability suitable for RF transmission requirements

Applications

Bluetooth low energy modules
Wi-Fi enabled IoT devices
GSM cellular communication hardware

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct packaging configuration. Confirm that the selected variant matches the required tape and reel specifications for automated assembly processes. Cross-reference the component marking with official documentation to prevent counterfeit substitution during sourcing.

Selection Notes

Select this component when a low-profile SMD antenna is required for 2.4GHz ISM band operations. Ensure the PCB layout accommodates the specified ground plane requirements for optimal radiation efficiency. Consider the physical footprint constraints relative to the 7mm length and 1.2mm height dimensions during mechanical design.

Part Context

This model belongs to the WE-MCA series of multilayer ceramic antennas manufactured by Würth Elektronik. These components are engineered for high reliability in mobile and wireless communication devices. The series provides standardized solutions for integrating RF antennas directly onto printed circuit boards without requiring external matching networks in many configurations.
