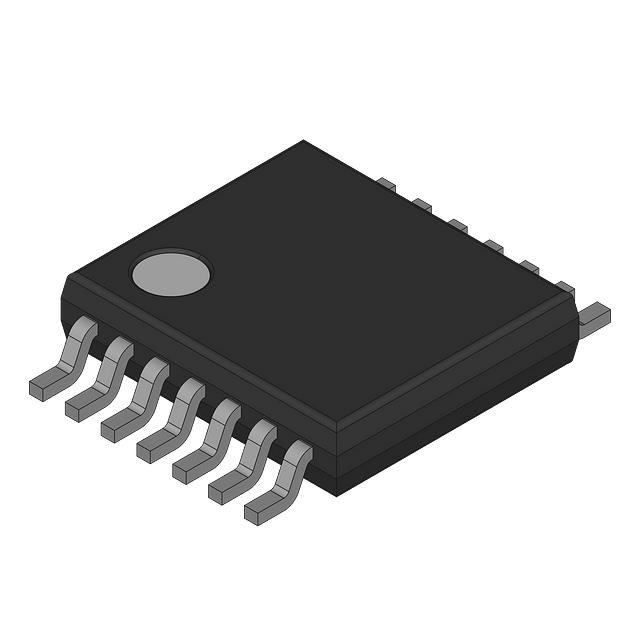

74HC27PW,112

$0.12

Description：IC GATE NOR
Series：*
Mfr：Nexperia USA Inc.
Package：Bulk

SKU:c964ac843ae1 Category: Gates and Inverters Brand: Nexperia USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC GATE NOR
Series：*
Mfr：Nexperia USA Inc.
Package：Bulk
Logic Type：-
Number of Circuits：-
Number of Inputs：-
Features：-
Voltage - Supply：-
Current - Quiescent (Max)：-
Current - Output High, Low：-
Input Logic Level - Low：-
Input Logic Level - High：-
Max Propagation Delay @ V, Max CL：-
Operating Temperature：-
Mounting Type：-
Supplier Device Package：-
Package / Case：-
Grade：-
Qualification：-

Download product information

74HC27PW,112

Overview

The Nexperia 74HC27PW,112 is a triple 3-input NOR gate in the 74HC logic family. It operates within a supply voltage range of 2.0 V to 6.0 V and features CMOS low power dissipation with high noise immunity. The device includes input clamp diodes for interfacing with voltages exceeding VCC. It provides latch-up performance exceeding 100 mA per JESD 78 Class II Level B and complies with JEDEC standards JESD8C and JESD7A. ESD protection exceeds 2000 V (HBM) and 1000 V (CDM). It is specified for ambient temperatures from -40 °C to +125 °C.

Feature Summary

Triple 3-input NOR logic function
Wide supply voltage operation from 2.0 V to 6.0 V
Input clamp diodes for overvoltage interface capability
High ESD protection and robust latch-up performance

Applications

General digital logic processing
Signal gating and control circuits
Industrial control systems

Procurement Notes

Verify the specific ordering suffix matches the required package variant. Confirm the component status as production active or obsolete through official Nexperia channels before finalizing procurement plans. Ensure compliance with RoHS and REACH regulations relevant to the target market.

Selection Notes

Select this component when a triple 3-input NOR gate is required in a TSSOP14 package. Verify that the operating voltage falls within the 2.0 V to 6.0 V range. Consider the -40 °C to +125 °C temperature specification for environmental suitability. Check pin compatibility against existing board layouts.

Part Context

This part belongs to the 74HC series of high-speed silicon-gate CMOS logic devices. It is manufactured by Nexperia USA Inc. and utilizes the TSSOP14 plastic thin shrink small outline package (SOT402-1). The device is designed for applications requiring low power consumption and high noise immunity in standard logic environments.
