74HC30PW/S400118

Overview

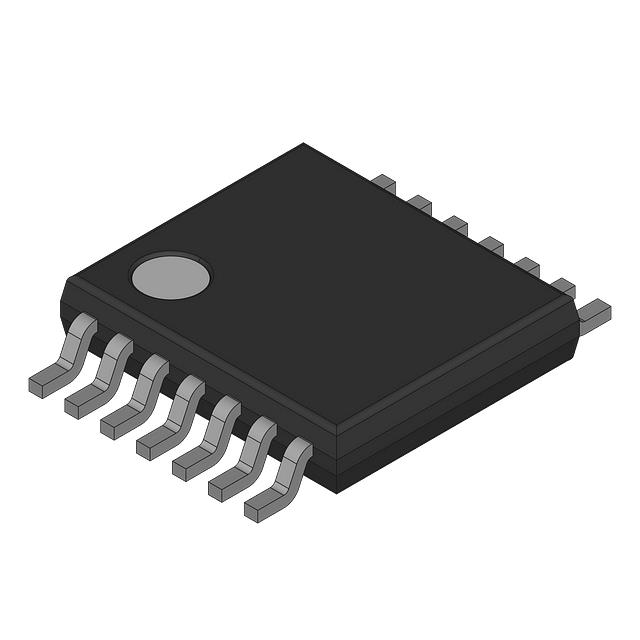

The 74HC30PW/S400118 is an 8-input NAND gate from the Nexperia 74HC series, housed in a 14-pin TSSOP package. It operates within a supply voltage range of 2 V to 6 V and supports a wide operating temperature range from -40 °C to +125 °C. The device features low static power consumption with a maximum quiescent current of 2 µA. It provides symmetrical output drive capabilities of 5.2 mA for both high and low states. Propagation delay is specified at 22 ns when driven at 6 V with a 50 pF load.

Feature Summary

• Single-function logic gate providing one channel of eight-input NAND logic
• CMOS technology ensuring low static power dissipation
• Robust industrial-grade thermal performance suitable for extreme environments

Applications

• Digital signal processing logic circuits
• Microcontroller peripheral interfacing
• General-purpose logic control systems

Procurement Notes

Verify the exact manufacturer designation as the model prefix indicates NXP USA Inc., while the component family typically belongs to Nexperia. Confirm the specific suffix S400118 against official distributor catalogs to ensure correct pinout and electrical specifications match the standard 74HC30PW variant before finalizing procurement orders.

Selection Notes

Select this component for applications requiring high fan-in logic functionality in a compact surface-mount footprint. Ensure the system supply voltage remains within the 2 V to 6 V operational window. Verify that the required propagation delay meets the timing constraints of the target digital circuit design.

Part Context

This part belongs to the widely adopted 74HC logic family, known for compatibility with standard CMOS technologies. It serves as a fundamental building block for complex digital designs, offering reliable switching characteristics and noise immunity suitable for various consumer and industrial electronic applications.

Replacement Considerations

Direct functional equivalents include the 74HC30D and other 74HC30 variants from compatible manufacturers. Verify package dimensions and pin configurations to ensure mechanical compatibility during replacement.
