74HC367PW,112

Overview

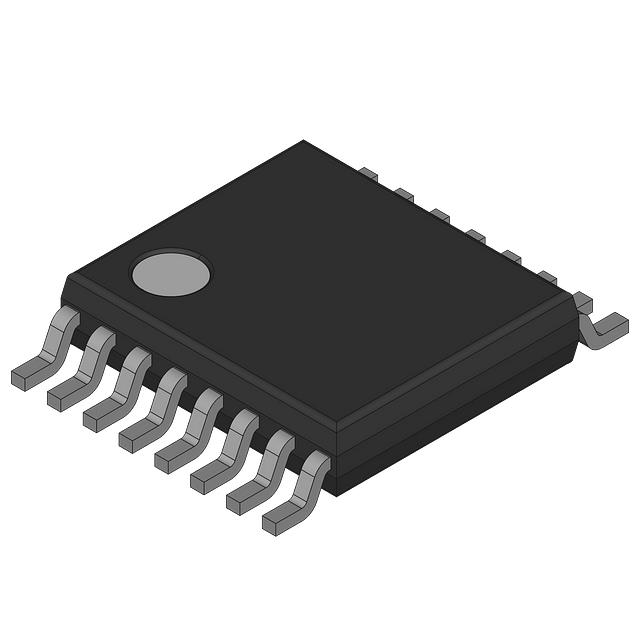

The 74HC367PW,112 is a hex buffer and line driver manufactured by Nexperia. It integrates six independent buffers configured as a 4-bit and a 2-bit block. The device features three-state outputs controlled by an active-low enable input. It operates within a supply voltage range of 2 V to 6 V and supports propagation delays of up to 12 ns at 5 V. The component is housed in a TSSOP-20 package and functions reliably across an industrial temperature range from -40 °C to +125 °C.

Feature Summary

• Integrates six independent buffers arranged in 4-bit and 2-bit configurations
• Provides three-state output capability for bus-oriented applications
• Features active-low enable control for output management

Applications

• Bus-oriented memory and signal driving
• Clock drivers and buffer circuits
• TTL-to-CMOS translation

Procurement Notes

Verify the specific suffix and manufacturer details against current official documentation before integration. Confirm availability status as distribution channels may vary. Ensure the selected component matches the required package type and electrical specifications for the target design environment.

Selection Notes

Select this component for designs requiring multiple buffered signals with tri-state control. It is suitable for interfacing between different logic families due to its wide voltage tolerance. Consider the TSSOP-20 package constraints and thermal performance when finalizing the layout.

Part Context

This part belongs to the 74HC series of high-speed CMOS logic devices. It serves as a standard solution for buffering and driving digital signals in complex integrated circuits. The hex buffer configuration allows for efficient signal routing and isolation within larger system architectures.

Replacement Considerations

Check for direct pin-compatible alternatives from the same family or other manufacturers offering equivalent hex buffer functionality with three-state outputs.
