74HC3G06DP,125

Overview

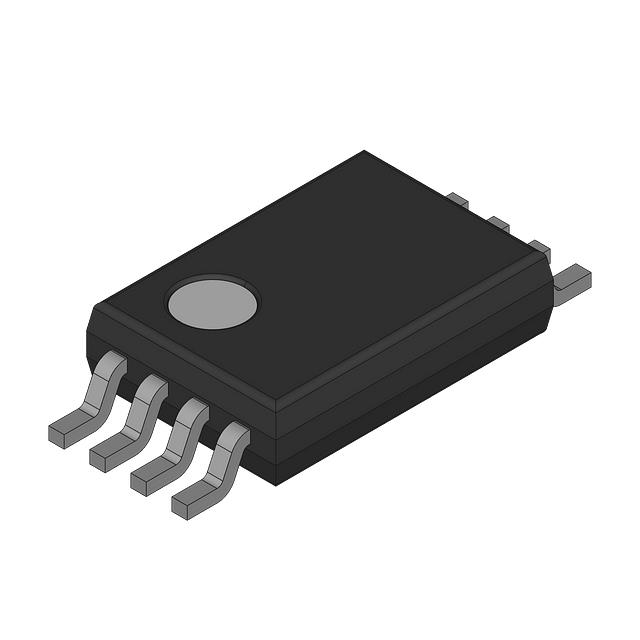

The Nexperia 74HC3G06DP,125 is a triple inverting buffer with open-drain outputs housed in an 8-pin TSSOP package. It operates within a supply voltage range of 2 V to 6 V and supports a wide operating temperature from -40 °C to +125 °C. The device features high noise immunity and low static power consumption typical of the HC CMOS series. Open-drain outputs allow for flexible interfacing with various logic families and bus systems.

Feature Summary

• Triple inverting buffers with open-drain output configuration
• Wide supply voltage operation from 2 V to 6 V
• High noise immunity suitable for noisy environments
• Low static power consumption

Applications

• General-purpose digital signal inversion
• Open-drain bus line driving
• Level shifting interfaces
• Logic buffering in consumer electronics

Procurement Notes

Verify the exact ordering code 74HC3G06DP,125 against the manufacturer's current datasheet to confirm pinout compatibility and package dimensions. Ensure that the open-drain nature of the outputs aligns with your circuit design requirements, as pull-up resistors are necessary for proper high-state logic levels. Confirm RoHS compliance status for your specific region.

Selection Notes

Select this component when three independent inverted signals with open-drain capability are required in a compact surface-mount package. It serves as a direct replacement for similar triple inverters in the 74HC family. Consider the 2 V to 6 V supply range for applications requiring flexibility between 3.3 V and 5 V logic systems.

Part Context

This part belongs to the Nexperia 74HC series of high-speed CMOS logic devices. The '3G' designation indicates three functional gates within a single package, while '06' specifies the inverter function with open-drain outputs. The 'DP' suffix denotes the TSSOP8 package type, and ',125' typically refers to the tape and reel packaging format.

Replacement Considerations

Compatible substitutes include other triple open-drain inverters from the 74HC family such as the 74HC3G04 (with external pull-ups) or equivalent parts from manufacturers like NXP Semiconductors. Verify pin-to-pin compatibility and electrical characteristics before substitution.
